Description

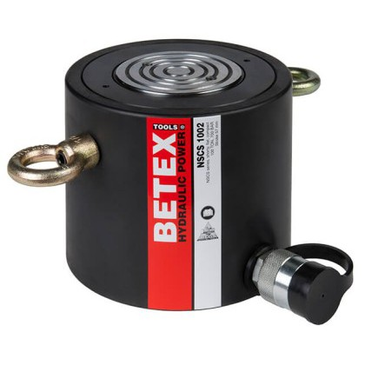

BETEX NSCS Compact cylinder, short stroke, single-acting, spring return, 100T class
Betex
NSCS-1002
Hydraulic cylinder, 700 bar
od EUR 2,692.67z VAT
netto EUR 2,189.16 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NSCS-1002—
EUR 2,692.67
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NSCS-1002#N
EAN4064328866355
Masa22.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic cylinder, 700 bar
- Part number (SKU)
- NSCS-1002#N
- EAN
- 4064328866355

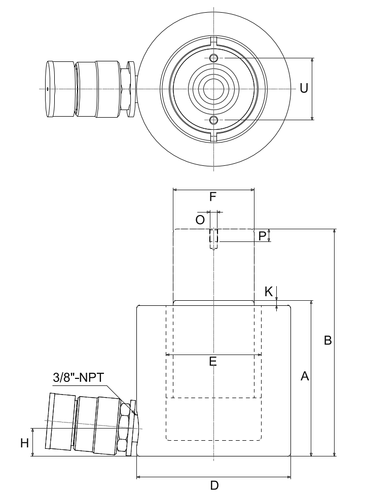

Dimensions
- Outside diameter D
- 165 mm
- Mass
- 22.70 kg
Full manufacturer specification17 parameters · expand
- Advance force, max.
- 1002.0 kN
- Base to advance port
- 25.0 mm
- Capacity class (tons)
- 100
- Cylinder bore diameter
- 135.0 mm
- Height, extended
- 204.5 mm
- Height, retracted
- 146.5 mm
- Oil capacity
- 830.0 cm³
- Operating pressure, max.
- 700.0 bar
- Piston mounting holes, bolt circle
- 55.0 mm
- Piston protrusion
- 1.5 mm
- Plunger diameter
- 92.0 mm
- Plunger female thread
- M8
- Plunger thread length
- 10.0 mm
- Product specifics
- Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap
- Series
- NSCS
- Stroke
- 58.0 mm
- Version
- 100T
