Description
Yoke type track rollers NATV..-PP-A, single row needle roller bearings with particularly thick-walled outer ring, full complement needle roller set and an inner ring, axial guidance of outer ring is provided by the plastic axial plain washers and contact washers, three-stage sealing by plastic axial plain washer on both sides
INA
NATV10-PP-A
Yoke type track roller
⌀10 × 30 mm
od EUR 35.90z VAT
netto EUR 29.19 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
NATV10-PP-A—
EUR 35.90
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)NATV10-PP-A#N1
EAN4012802427721
Wymiary⌀10 × 30 mm
Masa64 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Yoke type track roller
- Part number (SKU)
- NATV10-PP-A#N1
- EAN
- 4012802427721

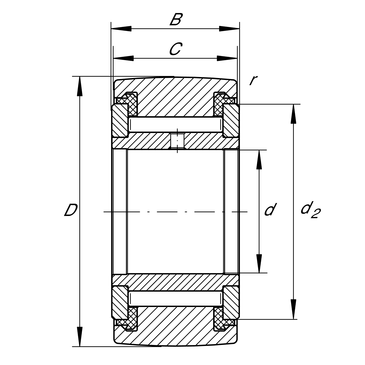

Dimensions
- Bore d
- 10 mm
- Outside diameter D
- 30 mm
- Mass
- 64 g
Load ratings and operation
- Dynamic load rating C
- 9500 N
- Static load rating C₀
- 15100 N
- Sealing
- PP
Full manufacturer specification14 parameters · expand
- Fatigue load limit, radial
- 2080.0 N
- Minimum chamfer dimension
- 0.6 mm
- Outer ring profile
- IOP
- Outside diameter of thrust washer
- 23.0 mm
- Permissible dynamic load outer ring, radial
- 14800.0 N
- Permissible static load, radial
- 15100.0 N
- PFAS
- nein
- REACH
- REACH conform
- Relubrication
- IR
- RoHS
- RoHS compliant
- Sealing
- PP
- Speed on permanent grease lubrication
- 2100.0 1/min
- Width of the bearing
- 15.0 mm
- Width, outer ring
- 14.0 mm
