Description
Needle roller bearings NAO, without ribs
INA
NAO25X40X17-XL
Needle roller bearing
⌀25 × 40 × 17 mm
od EUR 23.00z VAT
netto EUR 18.70 · cena detaliczna
EUR 30.68−25%
NAO25X40X17-XL—
EUR 30.68
EUR 23.00Cheaper in larger quantities
| from 10 pcs | EUR 24.44 | −2% |
| from 50 pcs | EUR 23.94 | −4% |
| from 250 pcs | EUR 22.44 | −10% |
Last few (1)dispatch within 24 h
Dispatched within 24 h from our own warehouse
Symbol (SKU)NAO25X40X17-XL#N1>1
EAN4054364708290
Wymiary⌀25 × 40 × 17 mm
Masa84.112 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller bearing
- Part number (SKU)
- NAO25X40X17-XL#N1>1
- EAN
- 4054364708290

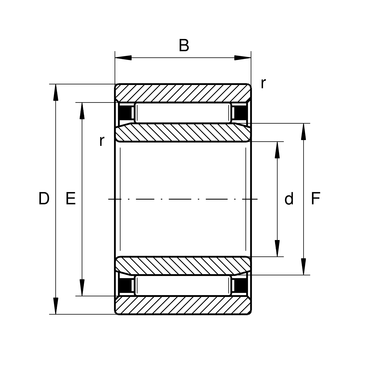

Dimensions
- Bore d
- 25 mm
- Outside diameter D
- 40 mm
- Width B
- 17 mm
- Mass
- 84.112 g
Load ratings and operation
- Dynamic load rating C
- 22100 N
- Static load rating C₀
- 34000 N
- Limiting speed
- 15100 1/min
Full manufacturer specification17 parameters · expand

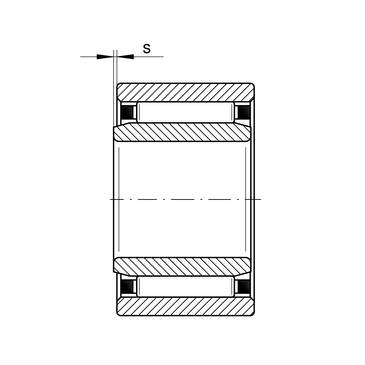

- Axial displacement
- 0.8 mm
- Fatigue load limit, radial
- 5400.0 N
- Marketing category
- XL

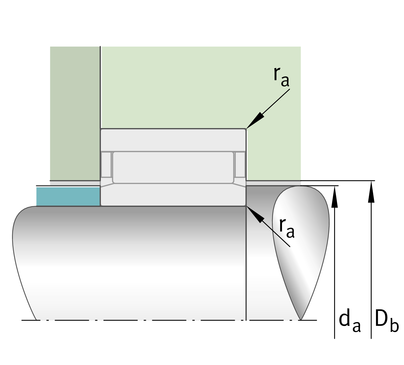

- Maximum recess radius
- 0.3 mm
- Minimum chamfer dimension
- 0.3 mm
- Mounting dimension
- 29.5 mm
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- Raceway diameter inner ring
- 30.0 mm
- Raceway diameter outer ring
- 35.0 mm
- REACH
- REACH conform
- Reference speed
- 8100.0 1/min
- RoHS
- RoHS compliant

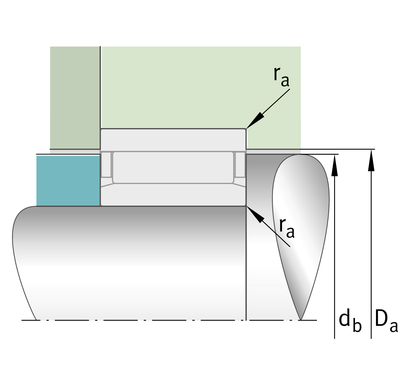

- Shoulder diameter axial guidance NK/housing
- 30.6 mm
- Shoulder diameter axial guidance NK/shaft
- 34.4 mm
- Shoulder diameter outer ring
- 35.5 mm
