Description

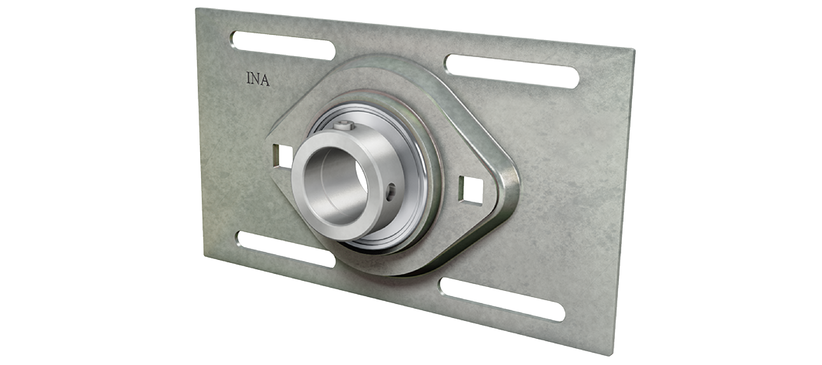

Take-up housing units MSTU, sheet steel housing, radial insert ball bearing with eccentric locking collar, P seals, with relubrication facility
INA
MSTU30-XL
Take-up housing unit
⌀30 × 62 mm
od EUR 39.50z VAT
netto EUR 32.11 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MSTU30-XL—
EUR 39.50
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MSTU30-XL#N1
EAN4012802792706
Wymiary⌀30 × 62 mm
Masa840 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
47 parametersIdentification
- Manufacturer
- INA
- Type
- Take-up housing unit
- Part number (SKU)
- MSTU30-XL#N1
- EAN
- 4012802792706

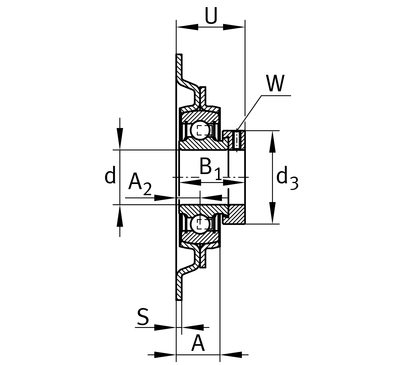

Dimensions
- Bore d
- 30 mm
- Outside diameter D
- 62 mm
- Mass
- 840 g
Full manufacturer specification40 parameters · expand
- Basic dynamic load rating
- 20700.0 N
- Basic static load rating
- 11300.0 N
- Bearing designation
- RAE30-XL-NPP-B
- Bearing in kit
- RAE30-XL-NPP-B
- Bearing sealed
- Yes
- Bearing sort
- RIBB
- Bearing split
- No

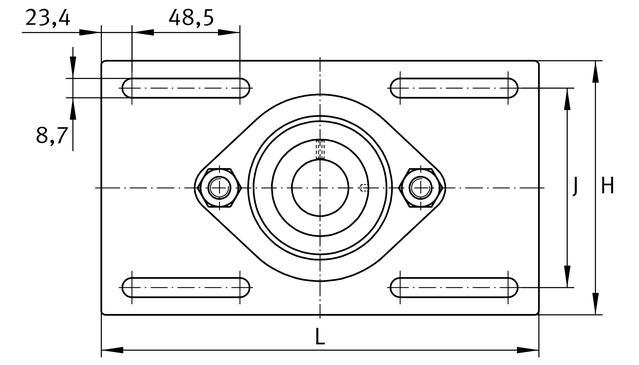

- Distance between mounting bolt centerlines (length)
- 59.4 mm
- Distance between mounting bolt centerlines (width)
- 89.2 mm
- Distance fixing bore
- 89.2 mm
- Distance raceway
- 12.1 mm
- Height bearing seat
- 57.15 mm
- Height flange
- 114.3 mm
- Height housing
- 21.1 mm
- Housing
- GEH62-MSTU
- Housing height
- 114.3 mm
- Housing in kit
- MSTU30-XL
- Housing length
- 203.2 mm
- Housing material
- SB
- Housing opening
- durchgehend
- Housing qty bolts
- 4
- Housing shape
- Viereck
- Housing sort
- Take-up
- Housing split
- Nein
- Housing width
- 37.8 mm
- Inner diameter bearing
- 30.0 mm
- Length total
- 203.2 mm
- Load carrying capacity (housing)
- 3900.0 N
- Location on shaft
- Acc
- Marketing category
- XL
- Material
- Steel sheet
- Operating temperature max.
- 120.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 62.0 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Sealing type
- LIP
- Thickness of flange
- 2.5 mm
- Total height unit
- 37.8 mm
