Description

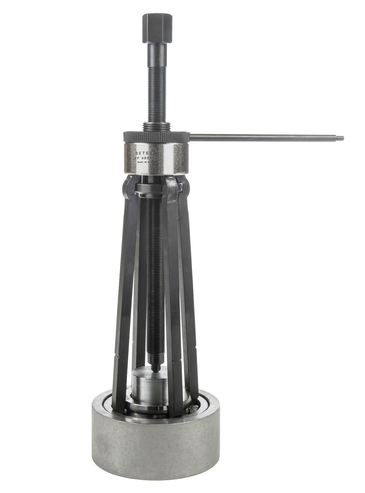

BETEX MP-40100, Pulling device for simultaneous removal of deep groove ball bearings from the shaft and from the housing – or only from a shaft fitted with a tight fit on the inner ring, for up to 23 standard deep groove ball bearings of defined sizes with bore diameters of 10 to 30 mm
Betex
MP-40100
Deep groove ball bearing puller, 4-arm
od EUR 382.42z VAT
netto EUR 310.91 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MP-40100—
EUR 382.42
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MP-40100#N1
EAN4064328734692
Masa1.42 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
13 parametersIdentification
- Manufacturer
- Betex
- Type
- Deep groove ball bearing puller, 4-arm
- Part number (SKU)
- MP-40100#N1
- EAN
- 4064328734692
Dimensions
- Mass
- 1.42 kg
Full manufacturer specification8 parameters · expand
- Delivery scope
- Threaded spindle with head and hand lever, 3 sets of 4 puller arms each, 10 support rings, selection aid table, carrying case
- Dimensions case (mm)
- 505 x 480 x 120
- Length puller arms no. 11
- 160.0 mm
- Length puller arms no. 12
- 160.0 mm
- Length puller arms no. 13
- 180.0 mm
- Suitable for bearing types
- 6000, 6001, 6002, 6003, 6200, 16002, 16003, 16100, 16101, 6004*, 6005*, 6006*, 6201, 6202*, 6203*, 6300*, 6204, 6205, 6301, 6302, 6303, 62/22, 63/22*
- Use

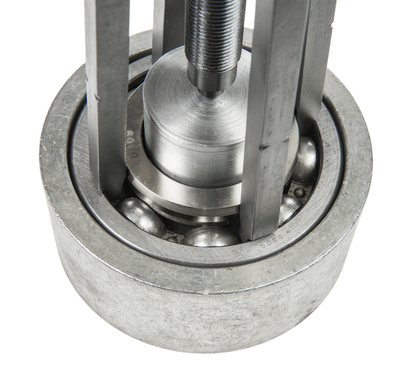

- Claws of the puller arms are placed between inner and outer ring and grip the ball track of the outer ring, removing of sealed bearings possible after prior removal of the seal
- Version
- SP
