Description
BETEX Mobipuller, max. pull-off force 245 kN, electrically driven hydraulic aggregate, mobile
Betex
MOBI-PULLER-25T-EVA430/S260

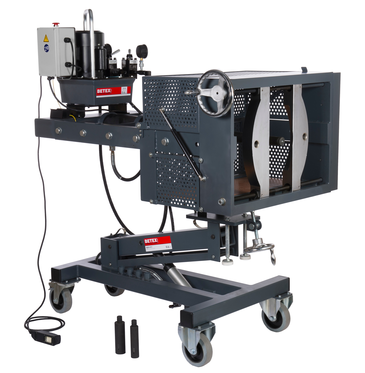

Mobile hydraulic heavy duty plate puller
od EUR 33,956.19z VAT
netto EUR 27,606.66 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MOBI-PULLER-25T-EVA430/S260—
EUR 33,956.19
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MOBI-PULLER-25T-EVA430/S260#N
EAN4064328425019
Masa430.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- Betex
- Type
- Mobile hydraulic heavy duty plate puller
- Part number (SKU)
- MOBI-PULLER-25T-EVA430/S260#N
- EAN
- 4064328425019
Dimensions
- Mass
- 430.00 kg
Full manufacturer specification15 parameters · expand
- Castors
- 2 swivel castors with brake function, 2 fixed castors
- Current type
- AC power

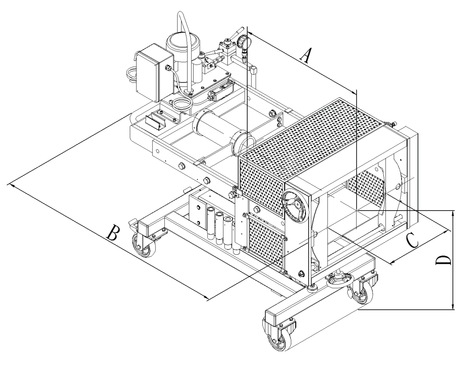

- Dimensions [LxWxH] (mm)
- 1570 x 990 x 1510
- Functional principle
- Plate puller, height adjustable, with safety cage
- Grip width, max.
- 430.0 mm
- Included in delivery
- Remote control, 4 adapter pieces (2x Ø 40 mm, 2x Ø 50 mm)
- Max. working stroke cylinder
- 260.0 mm
- PFAS
- nein
- Power frequency
- 50 – 60 Hz
- Pulling force
- 245.0 kN
- Pump
- Single acting, electrical
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Voltage
- 230.0 V
- Working height range [bottom – center axis cylinder] (mm)
- 900 – 1430
