Description

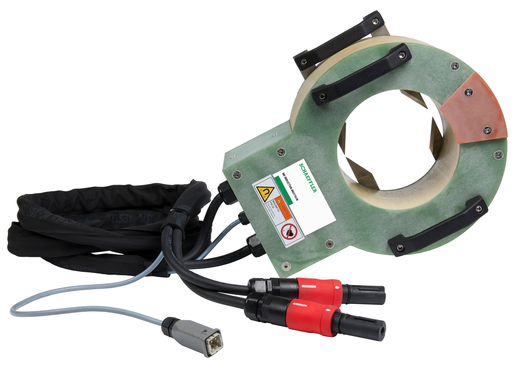

Inner-field fixed inductor for dismounting cylindrical roller bearing inner rings in axle boxes of rail vehicles
Schaeffler
MF-INDUCTOR-IN157X145
Medium frequency inductor
od EUR 10,302.23z VAT
netto EUR 8,375.80 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MF-INDUCTOR-IN157X145—
EUR 10,302.23
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MF-INDUCTOR-IN157X145#N1
EAN4064327821560
Masa15.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Medium frequency inductor
- Part number (SKU)
- MF-INDUCTOR-IN157X145#N1
- EAN
- 4064327821560
Dimensions
- Mass
- 15.00 kg
Full manufacturer specification12 parameters · expand
- Availability
- Product is manufactured to order. Request with specification of the application case to customer service.
- Bore diameter inductor
- 171.5 mm
- Clear width inductor, inside
- 150.0 mm
- Dimensions inner ring [dxFxW] (mm)
- 120x150x80+64,5; 130x157x80+64,5; 130x159x80+64,5
- For generators with power, max. ...
- 22.0 kW
- Max. permitted heating temperature
- 150.0 °C
- Note
- Product image exemplary. Product design subject to change.
- PFAS
- nein
- Recommended power setting
- 15.0 kW
- Suitable for bearing type
- FAG WJ/WJP120x240, WJ/WJP130x240
- Temperature guarded winding
- by thermal switch
- Version
- Fix R
