Description

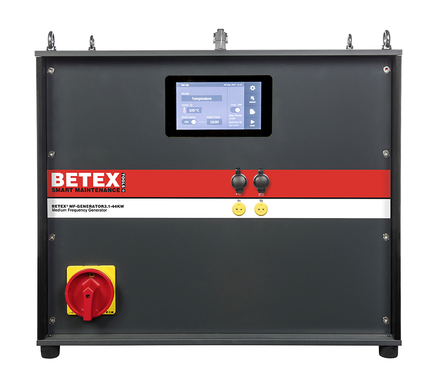

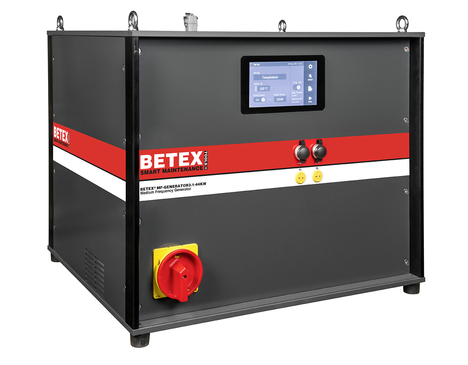

MF-GENERATOR 3.1 - 44kW
Betex
MF-GENERATOR3.1-44KW-400V
Medium frequency generator
od EUR 72,392.84z VAT
netto EUR 58,855.97 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MF-GENERATOR3.1-44KW-400V—
EUR 72,392.84
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MF-GENERATOR3.1-44KW-400V#N1
EAN4064328927858
Masa78.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
39 parametersIdentification
- Manufacturer
- Betex
- Type
- Medium frequency generator
- Part number (SKU)
- MF-GENERATOR3.1-44KW-400V#N1
- EAN
- 4064328927858
Dimensions
- Mass
- 78.00 kg
Full manufacturer specification34 parameters · expand
- Accuracy
- ± 3.5 °C / ± 6.3 °F
- Amperage
- 63.0 A
- Current type
- Three-phase AC
- Digital readings frequency
- Actual value on touchscreen
- Digital readings power
- Actual value on touchscreen
- Digital readings temperature
- Setpoint and actual value on touchscreen
- Digital readings time
- Setpoint and actual value on touchscreen
- Dimensions display
- 7”
- Dimensions of generator [LxWxH] (mm)
- 600 x 650 x 580
- Extra thermocouple input
- +
- Forced air cooling
- +
- Heat curve in display
- +
- Heating log
- +
- Inductor recognition
- +
- MF Frequency range
- 10 – 25 kHz
- Network connection
- +
- Power
- 44.0 kW
- Power frequency
- 50 – 60 Hz
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Selection operating mode
- via touchscreen
- Series
- 3.1
- Setpoint power
- via touchscreen
- Setpoint temperature
- via touchscreen
- Setpoint temperature curve
- +
- Setpoint timer
- via touchscreen
- Signal tower
- Option
- Signaling by ...
- End of heating cycle: acoustic signal
- Temperature measurement
- for type K thermocouple
- Temperature sensor
- yes, for max 300 °C / 572 °F
- Trolley
- Option
- USB connection
- +
- Version
- 44
- Voltage
- 400.0 V
