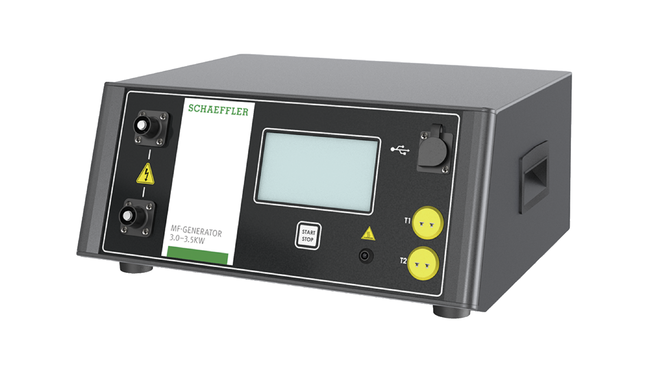

Compact MF-GENERATOR 3.0 - 3.5kW

Betex

MF-GENERATOR3.0-3.5KW-240V-CSA

Medium frequency generator

od EUR 10,426.87z VAT

netto EUR 8,477.13 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

MF-GENERATOR3.0-3.5KW-240V-CSA—
EUR 10,426.87
To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)MF-GENERATOR3.0-3.5KW-240V-CSA#N1
EAN4064328927940
Masa7.85 kg

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

Open a business account →

Technical data

32 parameters
Datasheet (PDF)Full manufacturer specification — drawing, dimensions, tolerances.

Identification

Manufacturer
Betex
Type
Medium frequency generator
Part number (SKU)
MF-GENERATOR3.0-3.5KW-240V-CSA#N1
EAN
4064328927940

Dimensions

Mass
7.85 kg
Full manufacturer specification27 parameters · expand
Accuracy
± 3.5 °C / ± 6.3 °F
Amperage
16.0 A
Current type
AC power
Digital readings temperature
Setpoint and actual value on touchscreen
Digital readings time
Setpoint and actual value on touchscreen
Dimensions display
4,3”
Dimensions of generator [LxWxH] (mm)
320 x 350 x 150
Extra thermocouple input
+
Forced air cooling
+
Heat curve in display
+
Heating log
+
Inductor recognition
—
MF Frequency range
10 – 50 kHz
Network connection
—
Power
3.5 kW
Power frequency
50 – 60 Hz
Selection operating mode
via touchscreen
Series
3.0
Setpoint temperature
via touchscreen
Setpoint temperature curve
+
Setpoint timer
via touchscreen
Signaling by ...
End of heating cycle: acoustic signal
Temperature measurement
for type K thermocouple
Temperature sensor
yes, for max 300 °C / 572 °F
USB connection
+
Version
3.5
Voltage
240.0 V
