Description
cable
INA

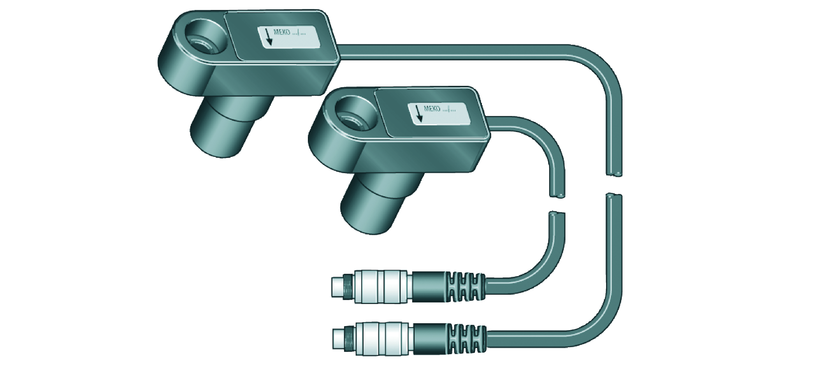

MEKOKAB150/180/325-WH-AL-B-KABELL:260CM
cable
od EUR 874.04z VAT
netto EUR 710.60 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MEKOKAB150/180/325-WH-AL-B-KABELL:260CM—
EUR 874.04
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MEKOKAB150/180/325-WH-AL-B-KABELL:260CM#
EAN4054363035830
Masa50 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
22 parametersIdentification
- Manufacturer
- INA
- Type
- cable
- Part number (SKU)
- MEKOKAB150/180/325-WH-AL-B-KABELL:260CM#
- EAN
- 4054363035830
Dimensions
- Mass
- 50 g
Full manufacturer specification17 parameters · expand
- Bolting Torque max.
- 6.0 Nm
- Bolting torque min.
- 5.4 Nm
- Bore diameter sensor MEKOKAB
- 5.5 mm
- Cable length
- 2,6 m
- Cap head screws MEKOKAB
- ISO4762-M5x12-8.8
- Color
- white
- Diameter sensor housing MEKOKAB
- 13.0 mm
- Flange length sensor MEKOKAB
- 40.0 mm
- Flange width sensor MEKOKAB
- 16.0 mm
- Ingress Protection
- IP65
- Length MEKOKAB (total)
- 34.5 mm
- Length MEKOKAB cylindrical housing
- 22.5 mm
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- 0.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
