Description
evaluation electronics
INA

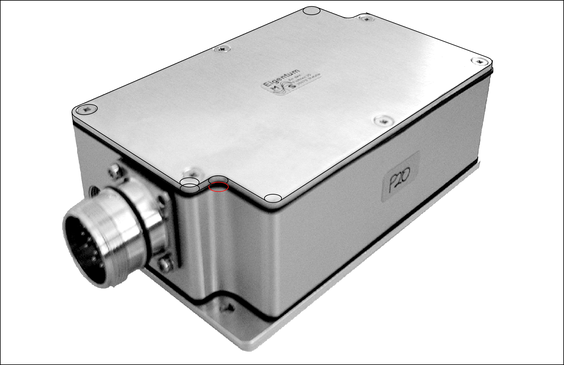

MEKOBOX-B
evaluation electronics
od EUR 2,657.76z VAT
netto EUR 2,160.78 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MEKOBOX-B—
EUR 2,657.76
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MEKOBOX-B#N1
EAN4054363035762
Masa250 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- evaluation electronics
- Part number (SKU)
- MEKOBOX-B#N1
- EAN
- 4054363035762
Dimensions
- Mass
- 250 g
Full manufacturer specification14 parameters · expand
- Cap head screws MEKOBOX
- ISO4762 M4X10-8.8
- Current consumption
- 200.0 mA
- Electronic interface
- SIN COS 1Vpp + reference signal

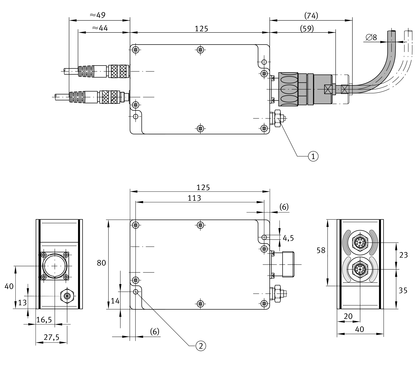

- Height MEKOBOX
- 40.0 mm
- Ingress protection
- IP65
- Length MEKOBOX (excluding plugs)
- 125.0 mm
- Length MEKOBOX (total)
- 236.0 mm
- Number pins plug connector
- 12.0
- Operating temperature max.
- 70.0 °C
- Operating temperature min.
- 0.0 °C
- PFAS
- nein
- Supply voltage
- 5.0 V DC
- Thread plug connector
- M23x1
- Width MEKOBOX
- 80.0 mm
