Description

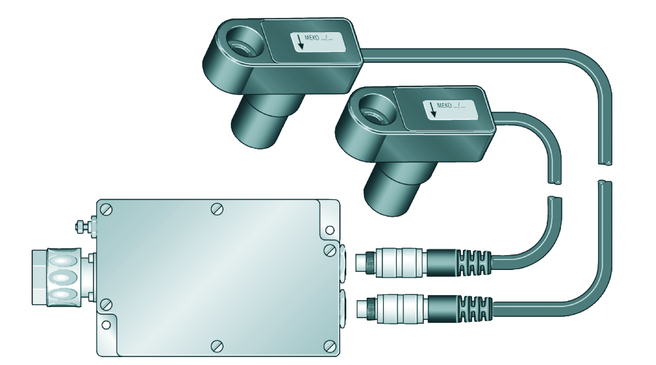

Measuring heads with connection cable and electronic evaluation system
INA
MEKO/U200-AL-B
sensing head
od EUR 2,700.77z VAT
netto EUR 2,195.75 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
MEKO/U200-AL-B—
EUR 2,700.77
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)MEKO/U200-AL-B#N1
EAN4054363035342
Masa200 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
16 parametersIdentification
- Manufacturer
- INA
- Type
- sensing head
- Part number (SKU)
- MEKO/U200-AL-B#N1
- EAN
- 4054363035342
Dimensions
- Mass
- 200 g
Full manufacturer specification11 parameters · expand
- Cable Length
- 2 m
- Cap Head Screws Sensor
- ISO4762 M5X12-8.8
- Electronic interface
- SIN COS 1Vpp + reference signal
- Length MEKOKAB cylindrical housing
- 20.0 mm
- PFAS
- nein
- Pins plug connector
- 12.0
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Thread plug connector
- M23x1
- Tightening torque lower tolerance
- 5.4 Nm
- Tightening torque upper tolerance
- 6.0 Nm
