Description

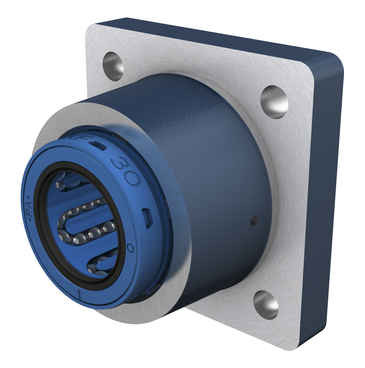

Flanged bearing unit, heavy duty range, self-aligning, seals on both sides
Schaeffler
LVCD40D-2LS
Linear ball bearing and housing unit
od EUR 525.33z VAT
netto EUR 427.10 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LVCD40D-2LS—
EUR 525.33
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LVCD40D-2LS#N1
EAN4064331057481
Masa1.97 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
11 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear ball bearing and housing unit
- Part number (SKU)
- LVCD40D-2LS#N1
- EAN
- 4064331057481

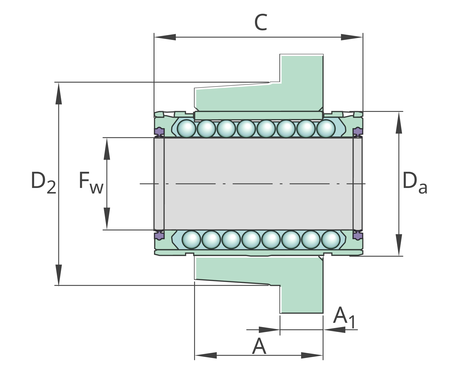

Dimensions
- Bore d
- 40 mm
- Mass
- 1.97 kg
Full manufacturer specification5 parameters · expand
- Load capacity dyn.
- 6550.0 N
- Load capacity stat.
- 3350.0 N
- Maximum Acceleration
- 100.0 m/s²
- REACH
- REACH conform
- Size code
- 40
