Description
Linear bearing unit, heavy duty range, self-aligning, open design, seals on both sides
Schaeffler
LUNF30D-2LS

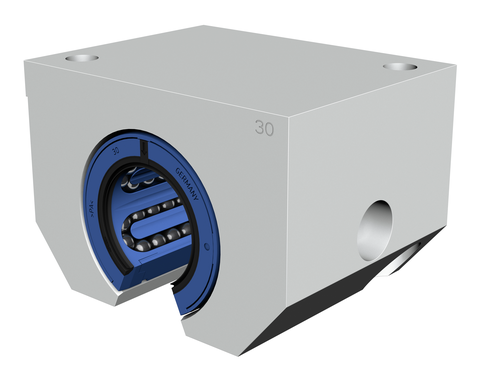

Linear ball bearing and housing unit
od EUR 489.88z VAT
netto EUR 398.28 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LUNF30D-2LS—
EUR 489.88
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LUNF30D-2LS#N1
EAN4064331057597
Masa694 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear ball bearing and housing unit
- Part number (SKU)
- LUNF30D-2LS#N1
- EAN
- 4064331057597
Dimensions
- Bore d
- 47 mm
- Mass
- 694 g
Full manufacturer specification13 parameters · expand
- Angle
- 50.0 °
- Center height
- 35.0 mm
- Height
- 60.0 mm
- Length
- 68.0 mm
- Load capacity dyn.
- 3250.0 N
- Load capacity stat.
- 1960.0 N
- Maximum Acceleration
- 100.0 m/s²
- Maximum Speed
- 5.0 m/s
- Number of seals
- 2
- REACH
- REACH_YES_7439-92-1!
- Size code
- 30
- Thread
- M10
- Width of cutout
- 14.2 mm
