Description

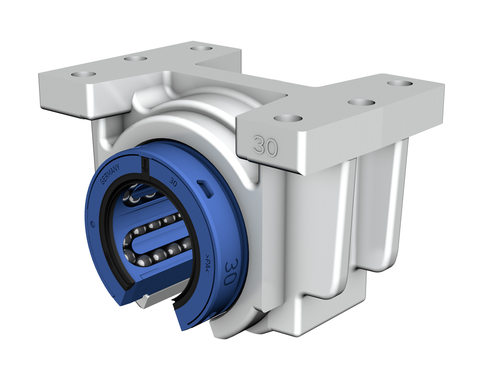

Linear bearing unit, heavy duty range, open design, shielded
Schaeffler
LUCT16D
Linear ball bearing and housing unit
od EUR 375.65z VAT
netto EUR 305.41 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LUCT16D—
EUR 375.65
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LUCT16D#N1
EAN4064331085415
Masa65 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear ball bearing and housing unit
- Part number (SKU)
- LUCT16D#N1
- EAN
- 4064331085415
Dimensions
- Bore d
- 26 mm
- Mass
- 65 g
Full manufacturer specification13 parameters · expand
- Angle
- 78.0 °
- Center height
- 22.0 mm
- Height
- 35.0 mm
- Height of Carriage
- 7.0 mm
- Length
- 36.0 mm
- Load capacity dyn.
- 765.0 N
- Load capacity stat.
- 585.0 N
- Maximum Acceleration
- 100.0 m/s²
- Maximum Speed
- 5.0 m/s
- Number of seals
- 0
- REACH
- REACH_YES_7439-92-1!
- Size code
- 16
- Width of cutout
- 10.4 mm
