Description
Inner ring LR, cylindrical
INA
LR15X18X16,5
Inner ring
od EUR 7.53z VAT
netto EUR 6.12 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LR15X18X16,5—
EUR 7.53
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LR15X18X16,5#N5
EAN4012802714265
Opakowanie5 szt.
Minimum order5 szt.
Masa9.7 g
Ten towar sprzedawany jest w opakowaniach po 5 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
15 parametersIdentification
- Manufacturer
- INA
- Type
- Inner ring
- Part number (SKU)
- LR15X18X16,5#N5
- EAN
- 4012802714265

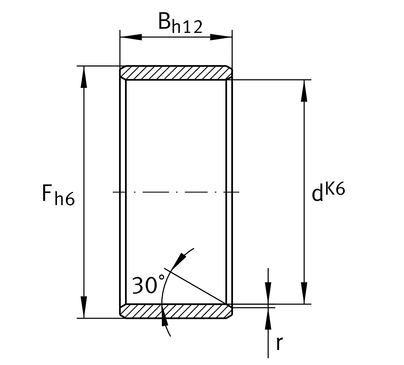

Dimensions
- Bore d
- 15 mm
- Width B
- 16.5 mm
- Mass
- 9.7 g
Full manufacturer specification8 parameters · expand
- Chamfer angle
- 30.0 °
- Lubrication hole
- Without
- Minimum chamfer dimension
- 0.3 mm
- PFAS
- nein
- Raceway diameter inner ring
- 18.0 mm
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Special features
- Without
