Schaeffler
LPAR80

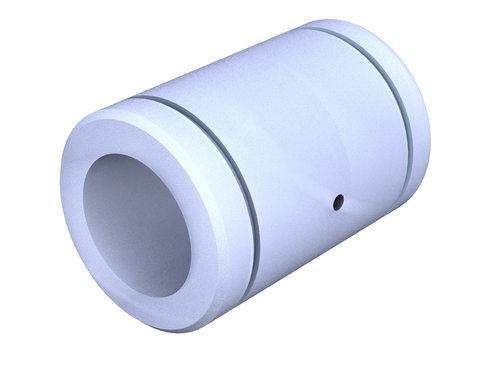

Linear plain bearing
⌀80 × 120 mm
od EUR 1,093.25z VAT
netto EUR 888.82 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LPAR80—
EUR 1,093.25
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LPAR80#N1
EAN4064331056842
Wymiary⌀80 × 120 mm
Masa1.32 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear plain bearing
- Part number (SKU)
- LPAR80#N1
- EAN
- 4064331056842
Dimensions
- Bore d
- 80 mm
- Outside diameter D
- 120 mm
- Mass
- 1.32 kg
Full manufacturer specification10 parameters · expand
- Distance between grooves
- 133.3 mm
- Groove width
- 4.15 mm
- Length
- 165.0 mm
- Load capacity dyn
- 116000.0 N
- Load rating at 0.1 m/s
- 33500.0 N
- Load rating at 4 m/s
- 830.0 N
- Number of seals
- 0
- REACH
- REACH conform
- Size code
- 80
- Width of the sliding surfaces
- 52.0 mm
