Description

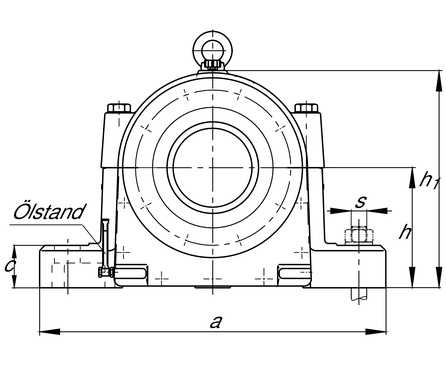

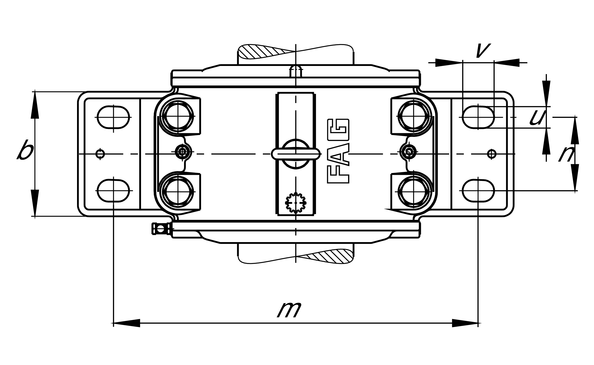

Plummer block housing, split, for spherical roller bearings, oil-lubrication
FAG
LOE326-N-BF-L
Plummer block housing
⌀130 × 280 × 315 mm
od EUR 9,784.95z VAT
netto EUR 7,955.24 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LOE326-N-BF-L—
EUR 9,784.95
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LOE326-N-BF-L#N1
EAN4012802343656
Wymiary⌀130 × 280 × 315 mm
Masa148.80 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
47 parametersIdentification
- Manufacturer
- FAG
- Type
- Plummer block housing
- Part number (SKU)
- LOE326-N-BF-L#N1
- EAN
- 4012802343656
Dimensions
- Bore d
- 130 mm
- Outside diameter D
- 280 mm
- Width B
- 315 mm
- Mass
- 148.80 kg
Full manufacturer specification39 parameters · expand
- Bearing sort
- SRB
- Bearing split
- No
- Bore distance width
- 110.0 mm
- Center heigth
- 235.0 mm
- Distance between mounting bolt centerlines (length)
- 530.0 mm
- Distance between mounting bolt centerlines (width)
- 110.0 mm
- Distance fixing bore
- 530.0 mm
- Height
- 420.0 mm
- Height bearing seat
- 235.0 mm
- Heigth base
- 80.0 mm
- Housing height
- 420.0 mm
- Housing length
- 660.0 mm
- Housing material
- GG
- Housing opening
- durchgehend
- Housing qty bolts
- 4
- Housing shape
- Fuss_lang
- Housing sort
- Plummer
- Housing split
- Ja
- Housing width
- 315.0 mm
- Inner diameter bearing
- 130.0 mm
- Length base
- 660.0 mm
- Length slot
- 60.0 mm
- Location collar width
- 86.0 mm
- Location on shaft
- Fix
- Maximum height oil level
- 105.0 mm
- Minimum height oil level
- 75.0 mm
- Oil quantity first filling
- 3.7 l
- Operating temperature max.
- 100.0 °C
- Operating temperature min.
- -20.0 °C
- Outer diameter bearing
- 280.0 mm
- PFAS
- nein
- Shaft diameter
- 130.0 mm
- Shaft diameter shoulder
- 140.0 mm
- Size of fixing screws
- M36
- Thread shaft nut
- M130X2
- Total width
- 315.0 mm
- Width base
- 200.0 mm
- Width housing body
- 220.0 mm
- Width slot
- 42.0 mm
