Description

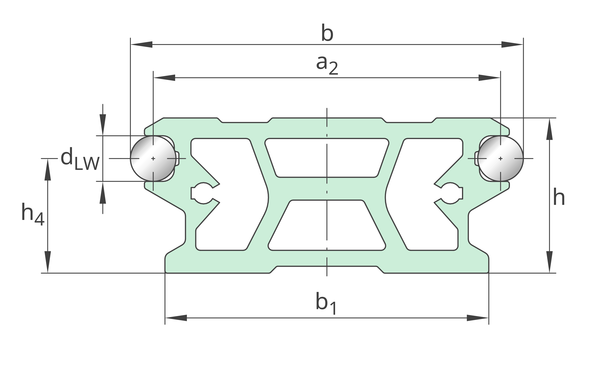

hollow section profile, with two raceway shafts; corrosion-resistant design possible
INA
LFS86X6000-C-OL-0020-EWL
Guideway
od EUR 910.64z VAT
netto EUR 740.36 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LFS86X6000-C-OL-0020-EWL—
EUR 910.64
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LFS86X6000-C-OL-0020-EWL#U
EAN4054364924270
Masa26.40 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- Guideway
- Part number (SKU)
- LFS86X6000-C-OL-0020-EWL#U
- EAN
- 4054364924270
Dimensions
- Width B
- 86 mm
- Mass
- 26.40 kg
Full manufacturer specification13 parameters · expand
- Cross-sectional area
- 1185.0 mm²
- Diameter
- 10.0 mm
- Distance
- 17.5 mm
- Height
- 34.0 mm
- Length maximum
- 6000.0 mm
- Location of guideway
- OL
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Second moment of area
- 155160.0 mm⁴
- Size code
- 86
- Type
- C
- Wider resistance torque
- 8866.0 mm³
