Description
solid profile, with two raceway shafts; corrosion-resistant design possible
INA
LFS32X6000-OL-0020-EWL
Guideway
od EUR 746.67z VAT
netto EUR 607.05 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LFS32X6000-OL-0020-EWL—
EUR 746.67
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LFS32X6000-OL-0020-EWL#U
EAN4054364924089
Masa9.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
18 parametersIdentification
- Manufacturer
- INA
- Type
- Guideway
- Part number (SKU)
- LFS32X6000-OL-0020-EWL#U
- EAN
- 4054364924089

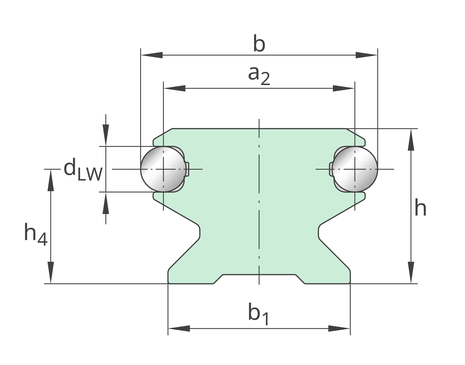

Dimensions
- Width B
- 32 mm
- Mass
- 9.60 kg
Full manufacturer specification12 parameters · expand
- Cross-sectional area
- 440.0 mm²
- Diameter
- 6.0 mm
- Distance
- 10.4 mm
- Height
- 20.0 mm

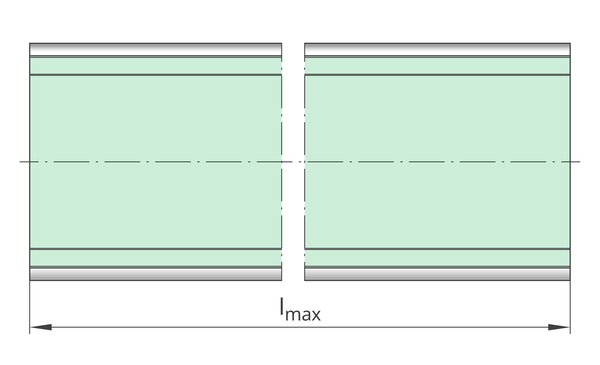

- Length maximum
- 6000.0 mm
- Location of guideway
- OL
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Second moment of area
- 14100.0 mm⁴
- Size code
- 32
- Wider resistance torque
- 1360.0 mm³
