Description

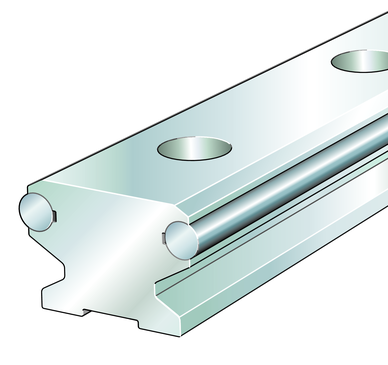

solid profile, fixing hole spacing half of standard, with two raceway shafts; corrosion-resistant design possible
INA
LFS32X4000-E-0020-EWL
Guideway
od EUR 623.56z VAT
netto EUR 506.96 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LFS32X4000-E-0020-EWL—
EUR 623.56
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LFS32X4000-E-0020-EWL#U
EAN4054372037511
Masa6.39 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
20 parametersIdentification
- Manufacturer
- INA
- Type
- Guideway
- Part number (SKU)
- LFS32X4000-E-0020-EWL#U
- EAN
- 4054372037511

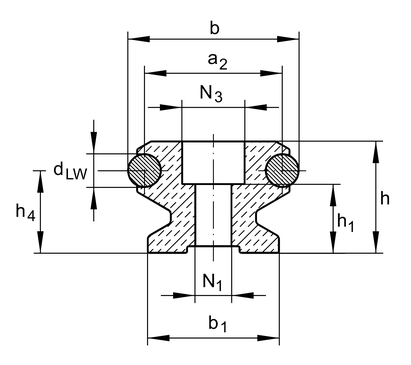

Dimensions
- Bore d
- 12 mm
- Width B
- 32 mm
- Mass
- 6.39 kg
Full manufacturer specification13 parameters · expand
- Cross-sectional area
- 440.0 mm²
- Diameter
- 6.0 mm
- Distance
- 11.0 mm
- Height
- 20.0 mm

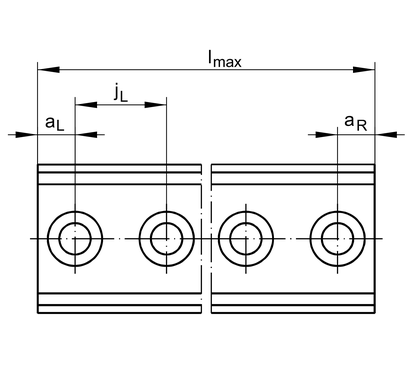

- Increment
- 62.5 mm
- Length maximum
- 6000.0 mm
- Location of guideway
- E
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant

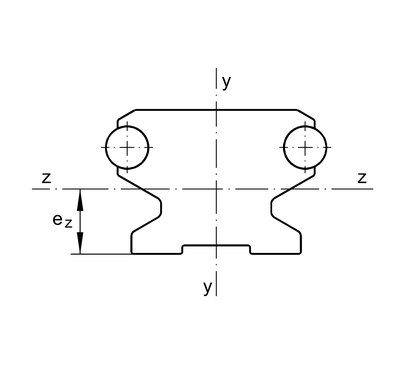

- Second moment of area
- 14100.0 mm⁴
- Size code
- 32
- Wider resistance torque
- 1360.0 mm³
