Description

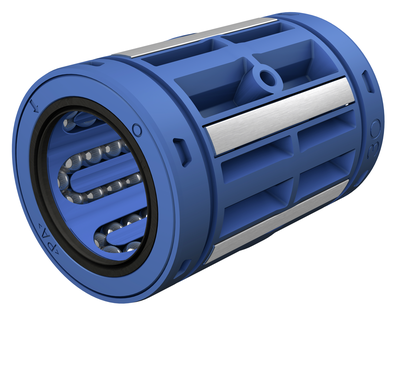

Linear ball bearing, heavy duty range, shielded
Schaeffler
LBCR16D
Linear ball bearing
⌀16 × 26 mm
od EUR 137.17z VAT
netto EUR 111.52 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LBCR16D—
EUR 137.17
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LBCR16D#N1
EAN4064331035335
Wymiary⌀16 × 26 mm
Masa24 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear ball bearing
- Part number (SKU)
- LBCR16D#N1
- EAN
- 4064331035335
Dimensions
- Bore d
- 16 mm
- Outside diameter D
- 26 mm
- Mass
- 24 g
Full manufacturer specification10 parameters · expand
- Ball rows
- 5.0
- Distance between grooves
- 24.6 mm
- Groove width
- 1.3 mm
- Length
- 36.0 mm
- Load capacity dyn.
- 1080.0 N
- Load capacity stat.
- 800.0 N
- Maximum Acceleration
- 100.0 m/s²
- Maximum Speed
- 5.0 m/s
- Number of seals
- 0
- REACH
- REACH conform
