Description

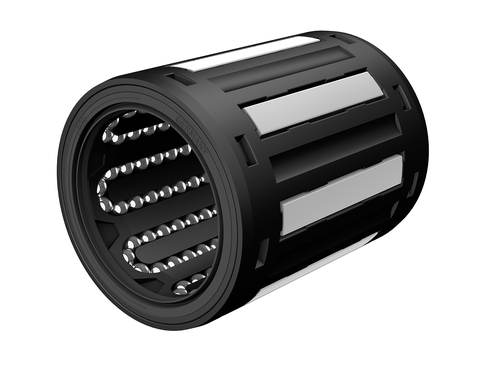

Linear ball bearing, compact range, seals on both sides, stainless steel
Schaeffler
LBBR3-2LS-HV6
Linear ball bearing
⌀3 × 7 mm
od EUR 125.66z VAT
netto EUR 102.16 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LBBR3-2LS-HV6—
EUR 125.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LBBR3-2LS-HV6#N1
EAN4064331058525
Wymiary⌀3 × 7 mm
Masa0.7 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
14 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Linear ball bearing
- Part number (SKU)
- LBBR3-2LS-HV6#N1
- EAN
- 4064331058525

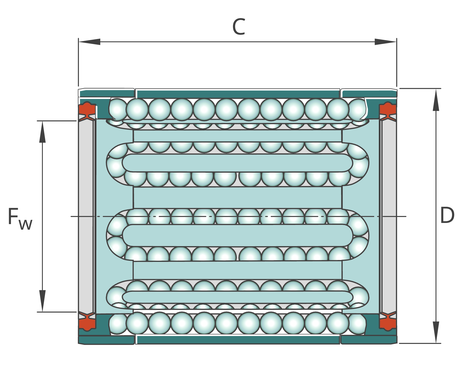

Dimensions
- Bore d
- 3 mm
- Outside diameter D
- 7 mm
- Mass
- 0.7 g
Full manufacturer specification7 parameters · expand
- Ball rows
- 4.0
- Length
- 10.0 mm
- Load capacity dyn.
- 60.0 N
- Load capacity stat.
- 44.0 N
- Maximum Acceleration
- 100.0 m/s²
- Maximum Speed
- 5.0 m/s
- REACH
- REACH conform
