Description

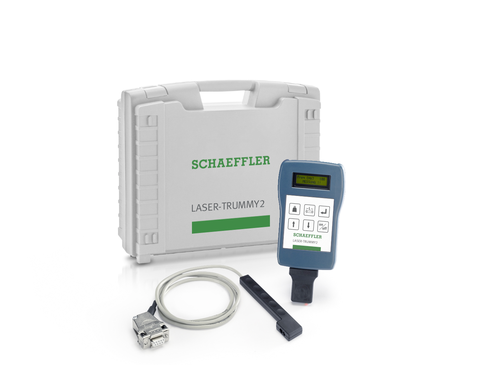

System for measuring belt tension
Schaeffler
LASER-TRUMMY2
Belt tension gauge
od EUR 1,001.45z VAT
netto EUR 814.19 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
LASER-TRUMMY2—
EUR 1,001.45
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)LASER-TRUMMY2#S1>1
EAN4012802270839
Masa980 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Belt tension gauge
- Part number (SKU)
- LASER-TRUMMY2#S1>1
- EAN
- 4012802270839
Dimensions
- Mass
- 980 g
Load ratings and operation
- Operating temperature
- +10 °C ... +50 °C
Full manufacturer specification17 parameters · expand
- Available languages
- 10
- Calibration (recommended)
- max. 2 years (periodic)
- Digital sampling error
- < 1%
- Dimensions Case (mm)
- 255 x 210 x 60
- Dimensions device (mm)
- 80 x 126 x 37
- Display
- 2 lines LCD, 16 characters
- Display error
- ± 1 Hz
- Housing material
- Plastic (ABS)
- Included in delivery
- 1 pc. measuring instrument, 1 pc. measurement sensor with cable, 1 pc. plug-in sensor, 1 pc. battery, 1 pc. transport case
- Input limit belt mass
- ≤ 9,999 kg/m
- Input limit free strand length
- ≤ 9,99 m
- Measuring range frequency
- 10 Hz – 800 Hz
- Minimum free belt strand
- > 150 mm
- Operating temperature
- +10 °C ... +50 °C
- PFAS
- nein
- Power supply
- Battery (9 V)
- Total error
- < 5%
