INA

KWVE15-B-V1-G3

Name: KWVE15-B-V1-G3
Brand: INA
SKU: KWVE15-B-V1-G3#N1
Price: 87.34 EUR
Availability: BackOrder

Recirculating ball bearing carriage

od EUR 87.34z VAT

netto EUR 71.01 · cena detaliczna

This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.

KWVE15-B-V1-G3—

EUR 87.34

To orderapprox. 10 days

Brought in to order — approx. 10 working days

Symbol (SKU)KWVE15-B-V1-G3#N1

EAN4054362965763

Masa199 g

Buying for a company?

A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.

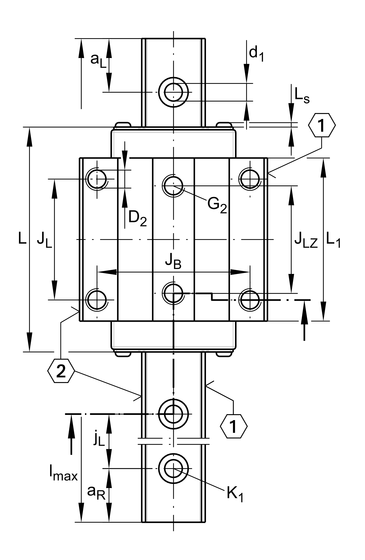

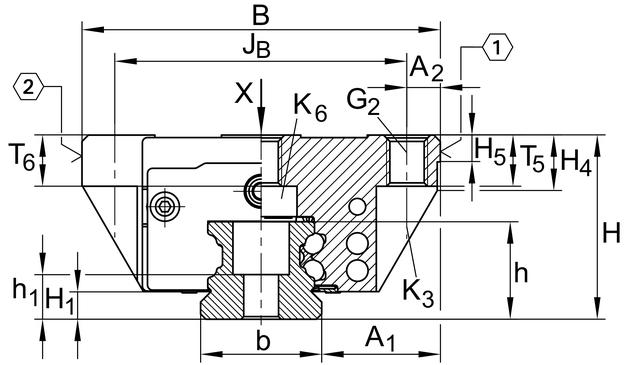

Technical data

33 parameters

Full manufacturer specification28 parameters · expand

Accuracy class: G3
Carriage design: Standard
Distance from locating edge on carriage to locating edge on guideway: 16.0 mm
Distance from locating edge to hole: 4.5 mm
Dynamic load rating: 7200.0 N
Fixing screws above (DIN ISO 4762-12.9): M5
Fixing screws below (DIN 7984-8.8): M4
Fixing screws below (DIN ISO 4762-12.9): M4
Free space, system dimension: 4.3 mm
Height system: 24.0 mm

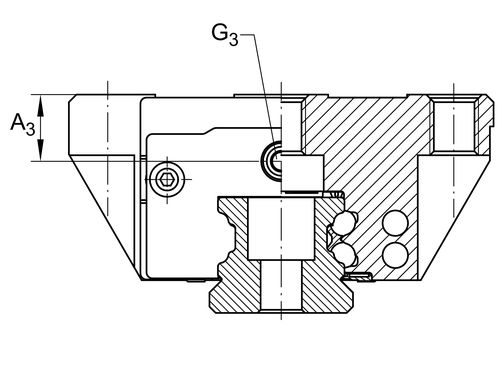

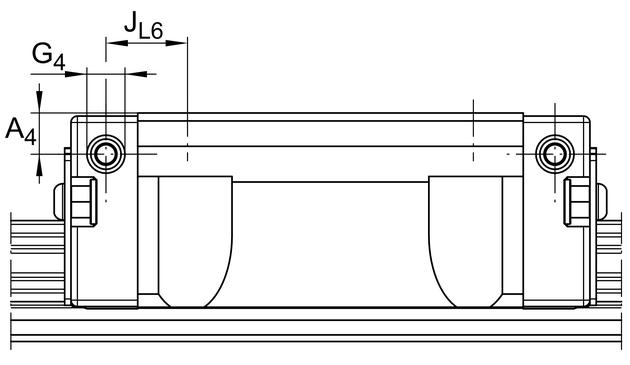

Lubrication connector: M3
Material name: KWVE
Maximum permissible screw depth for lubrication connectors: 5.5 mm
Maximum tightening torque: 5.8 Nm
Overall length carriage: 61.2 mm
PFAS: nein
Position lubrication connector: 9.1 mm
Preload class: V1
REACH: REACH compliant for SVHC free linear products (acc to PL responsibles)
Size code: 15
Static load rating: 14500.0 N
Static moment rating about X axis: 150.0 Nm
Static moment rating about Y axis: 100.0 Nm
Static moment rating about Z axis: 100.0 Nm
Thread depth: 7.0 mm
Version: B
Width carriage: 47.0 mm
Width rail: 15.0 mm
