Description

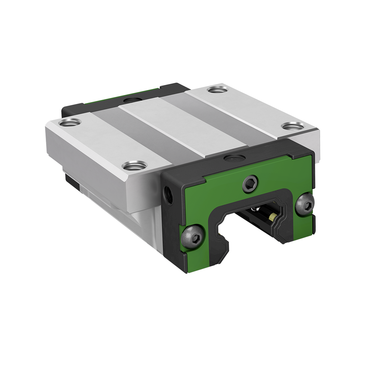

Standard flanged carriage,standard end plate, for four-row linear recirculating ball bearing and guideway assembly
INA
KWLT45-A-V2-G4
Recirculating ball bearing carriage
od EUR 150.43z VAT
netto EUR 122.30 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KWLT45-A-V2-G4—
EUR 150.43
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KWLT45-A-V2-G4#N1
EAN4064328841451
Masa2.51 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
32 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating ball bearing carriage
- Part number (SKU)
- KWLT45-A-V2-G4#N1
- EAN
- 4064328841451
Dimensions
- Mass
- 2.51 kg
Full manufacturer specification27 parameters · expand
- Accuracy class
- G4
- Basic static load capacity
- 101000.0 N
- Carriage design
- A
- Carrier length
- 96.0 mm
- Distance from locating edge on carriage to locating edge on guideway
- 37.5 mm
- Distance from locating edge to hole
- 10.0 mm
- Dynamic load rating
- 59000.0 N
- Dynamic moment rating about X-axis
- 1442.0 Nm
- Dynamic moment rating about y-axis
- 1505.0 Nm
- Dynamic moment rating about Z-axis
- 1505.0 Nm

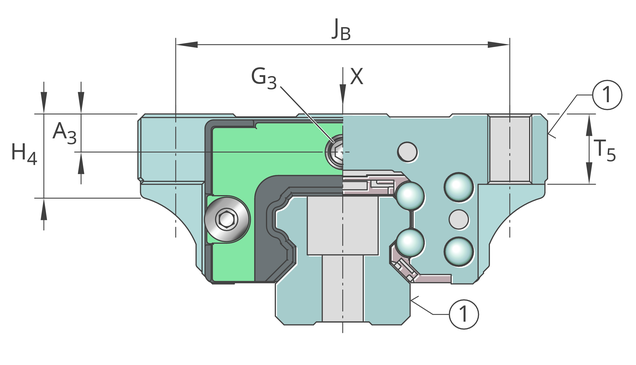

- Free space, system dimension
- 14.0 mm
- Height system
- 60.0 mm
- Hole spacing
- 100.0 mm
- Hole Spacing
- 80.0 mm
- Material name
- KWLT
- Maximum tightening torque
- 140.0 Nm
- Overall length carriage
- 135.0 mm

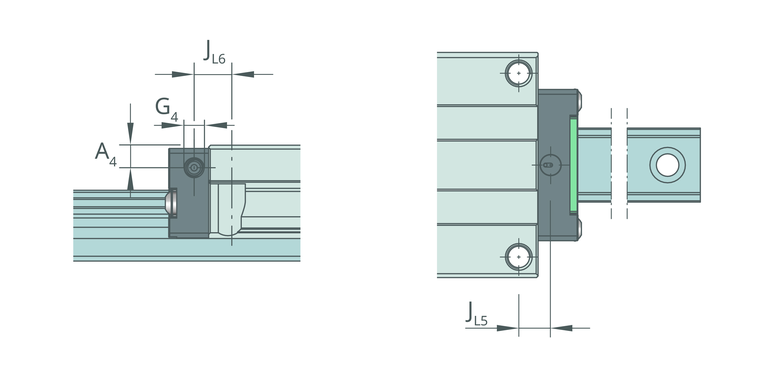

- Position lubrication connector
- 8.5 mm
- Preload class
- V2
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 45
- Static moment rating about X-axis
- 2700.0 Nm
- Static moment rating about Y-axis
- 1520.0 Nm
- Static moment rating about Z-axis
- 1520.0 Nm
- Thread depth
- 15.0 mm
- Thread size, DIN ISO 4762-12.9
- M12
- Width carriage
- 120.0 mm
