Description

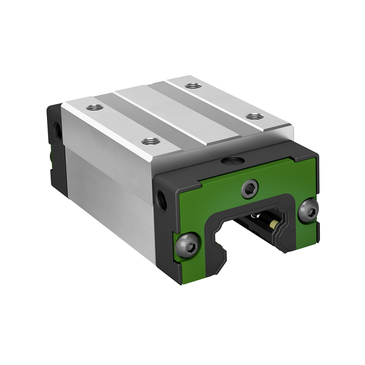

High carriage, standard end plate, for four-row linear recirculating ball bearing and guideway assembly
INA
KWLT30-H-V1-G3
Recirculating ball bearing carriage
od EUR 111.34z VAT
netto EUR 90.52 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KWLT30-H-V1-G3—
EUR 111.34
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KWLT30-H-V1-G3#N1
EAN4064328801790
Masa840 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
32 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating ball bearing carriage
- Part number (SKU)
- KWLT30-H-V1-G3#N1
- EAN
- 4064328801790
Dimensions
- Mass
- 840 g
Full manufacturer specification27 parameters · expand
- Accuracy class
- G3
- Basic static load capacity
- 49500.0 N
- Carriage design
- H
- Carrier length
- 67.4 mm
- Distance from locating edge on carriage to locating edge on guideway
- 16.0 mm
- Distance from locating edge to hole
- 10.0 mm
- Dynamic load rating
- 27500.0 N
- Dynamic moment rating about X-axis
- 406.0 Nm
- Dynamic moment rating about y-axis
- 493.0 Nm
- Dynamic moment rating about Z-axis
- 493.0 Nm
- Free space, system dimension
- 9.0 mm
- Height system
- 45.0 mm
- Hole spacing
- 40.0 mm
- Hole Spacing
- 40.0 mm
- Material name
- KWLT
- Maximum tightening torque
- 40.0 Nm
- Overall length carriage
- 100.4 mm
- Position lubrication connector
- 11.0 mm
- Preload class
- V1
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 30
- Static moment rating about X-axis
- 790.0 Nm
- Static moment rating about Y-axis
- 540.0 Nm
- Static moment rating about Z-axis
- 540.0 Nm
- Thread depth
- 11.0 mm
- Thread size, DIN ISO 4762-12.9
- M8
- Width carriage
- 60.0 mm
