Description
Short flanged carriage, standard end plate, for four-row linear recirculating ball bearing and guideway assembly
INA
KWLT15-AS-V1-G3
Recirculating ball bearing carriage
od EUR 54.99z VAT
netto EUR 44.71 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KWLT15-AS-V1-G3—
EUR 54.99
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KWLT15-AS-V1-G3#N1
EAN4064328781740
Masa130 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
31 parametersIdentification
- Manufacturer
- INA
- Type
- Recirculating ball bearing carriage
- Part number (SKU)
- KWLT15-AS-V1-G3#N1
- EAN
- 4064328781740
Dimensions
- Mass
- 130 g
Full manufacturer specification26 parameters · expand
- Accuracy class
- G3
- Basic static load capacity
- 10800.0 N
- Carriage design
- AS
- Carrier length
- 25.6 mm
- Distance from locating edge on carriage to locating edge on guideway
- 16.0 mm
- Distance from locating edge to hole
- 4.5 mm
- Dynamic load rating
- 6300.0 N
- Dynamic moment rating about X-axis
- 50.0 Nm
- Dynamic moment rating about y-axis
- 43.0 Nm
- Dynamic moment rating about Z-axis
- 43.0 Nm
- Free space, system dimension
- 4.6 mm
- Height system
- 24.0 mm
- Hole spacing
- 38.0 mm
- Material name
- KWLT
- Maximum tightening torque
- 9.7 Nm
- Overall length carriage
- 47.6 mm

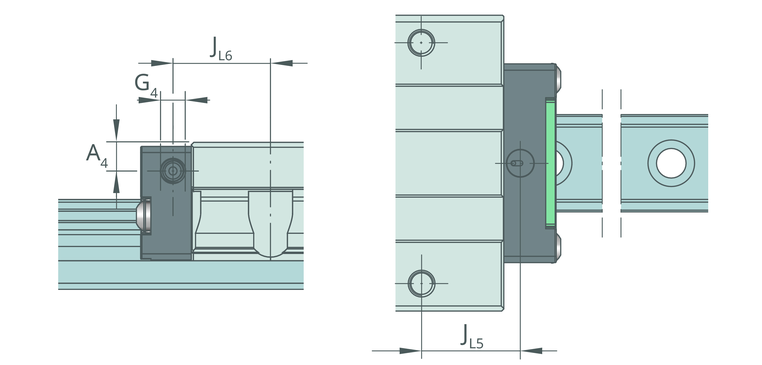

- Position lubrication connector
- 4.3 mm
- Preload class
- V1
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 15
- Static moment rating about X-axis
- 95.0 Nm
- Static moment rating about Y-axis
- 47.0 Nm
- Static moment rating about Z-axis
- 47.0 Nm
- Thread depth
- 8.0 mm
- Thread size, DIN ISO 4762-12.9
- M5
- Width carriage
- 47.0 mm
