Description

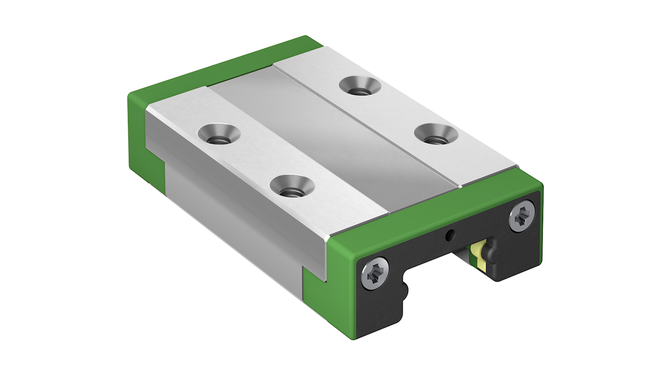

Miniature Carriage, Standard; for Miniature-Guideway, Standard
INA
KWEM12-E-V1-G2
Miniature Carriage, Standard for Miniature-Guideway, Standard
od EUR 58.73z VAT
netto EUR 47.75 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KWEM12-E-V1-G2—
EUR 58.73
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KWEM12-E-V1-G2#N1
EAN4064328500327
Masa41 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
30 parametersIdentification
- Manufacturer
- INA
- Type
- Miniature Carriage, Standard for Miniature-Guideway, Standard
- Part number (SKU)
- KWEM12-E-V1-G2#N1
- EAN
- 4064328500327
Dimensions
- Mass
- 41 g
Full manufacturer specification25 parameters · expand
- Accuracy class
- G2
- Basic static load capacity
- 3900.0 N
- Carriage design
- /
- Distance from locating edge on carriage to locating edge on guideway
- 7.5 mm
- Distance from locating edge to hole
- 3.5 mm
- Dynamic load rating
- 2500.0 N
- Free space, system dimension
- 3.35 mm
- Height system
- 13.0 mm
- Hole spacing
- 20.0 mm
- Hole Spacing
- 15.0 mm
- Length of carriage
- 35.0 mm
- Material name
- KWEM
- Maximum tightening torque
- 1.1 Nm
- Position lubrication connector
- 2.65 mm
- Preload class
- V1
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Size code
- 12
- Static moment rating about X axis
- 21.5 Nm
- Static moment rating about Y axis
- 11.7 Nm
- Static moment rating about Z axis
- 11.7 Nm
- Thread depth
- 3.5 mm
- Thread size
- M3
- Version
- E
- Width carriage
- 27.0 mm
- Width rail
- 12.0 mm
