Description

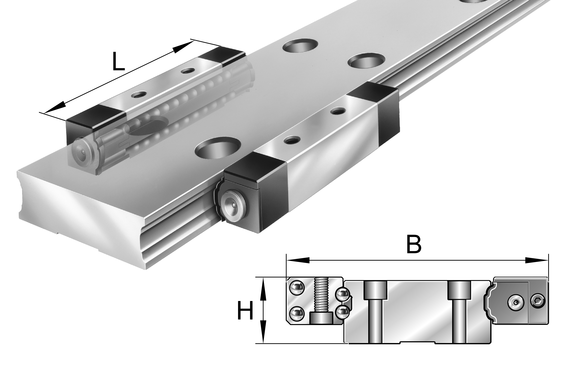

linear recirculating ball bearing units for guideway with raceways on both sides
INA
KUVS17-B
Linear recirculating ball bearing unit
od EUR 103.95z VAT
netto EUR 84.51 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KUVS17-B—
EUR 103.95
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KUVS17-B#N
EAN4054362930662
Masa199 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
28 parametersIdentification
- Manufacturer
- INA
- Type
- Linear recirculating ball bearing unit
- Part number (SKU)
- KUVS17-B#N
- EAN
- 4054362930662
Dimensions
- Mass
- 199 g
Full manufacturer specification23 parameters · expand
- Associated rail(s)
- TKVD71
- Closing plug rail
- KA10-TN
- Diameter
- 6.0 mm

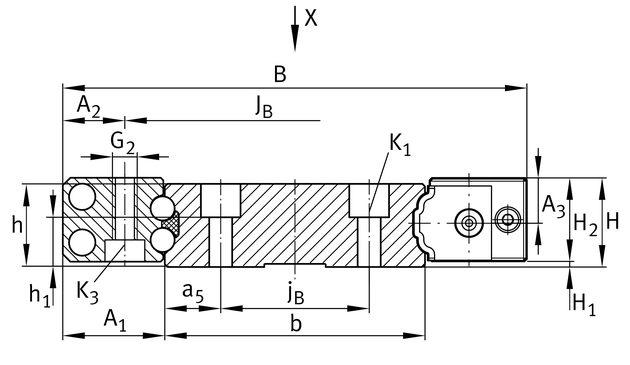

- Free space, system dimension
- 0.5 mm
- Height linear recirculating ball bearing units
- 17.5 mm
- Height rail
- 17.0 mm
- Height sytem
- 18.0 mm

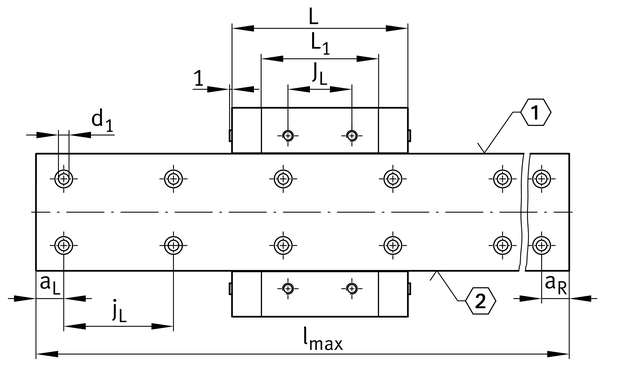

- Length linear recirculating ball bearing units
- 96.0 mm
- Load capacity dyn
- 46500.0 N
- Load capacity dyn C
- 26000.0 N
- Max. length rail
- 2940.0 mm

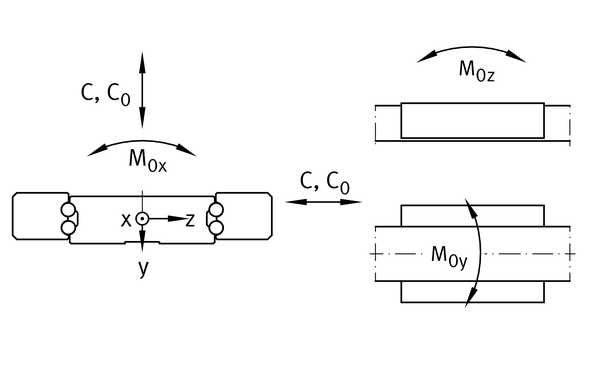

- Moment ratings M0X
- 1872.0 Nm
- Moment ratings M0Y
- 492.0 Nm
- Moment ratings M0Z
- 492.0 Nm
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Size code
- 17
- Suffix
- B
- Thread
- M4
- Tightening torque
- 3.0 Nm
- Width rail
- 71.0 mm
- Width system
- 116.0 mm
