Description

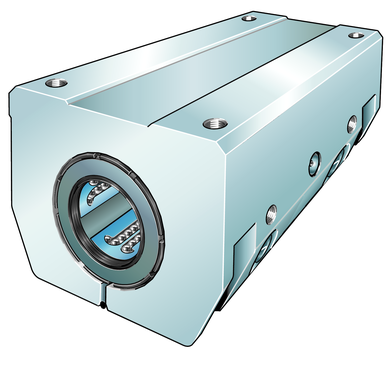

Linear ball bearing and housing unit; adjustable clearance, with self-aligning linear ball bearing, contact seals on both sides
INA
KTSS30-PP-AS
Linear Ball Bearing and Housing Unit
od EUR 222.49z VAT
netto EUR 180.89 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KTSS30-PP-AS—
EUR 222.49
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KTSS30-PP-AS#N1
EAN4012802130928
Masa1.70 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KTSS30-PP-AS#N1
- EAN
- 4012802130928
Dimensions

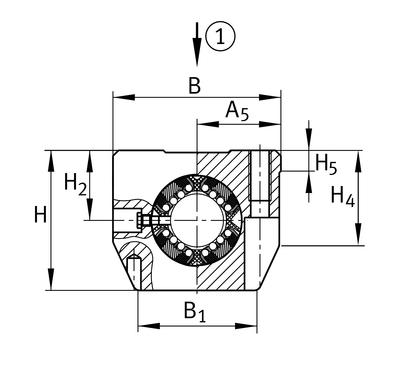

- Width B
- 87 mm
- Mass
- 1.70 kg
Load ratings and operation
- Sealing
- PP
Full manufacturer specification18 parameters · expand
- Ball rows
- 8.0
- Center height
- 35.0 mm
- Diameter of ball complement
- 30.0 mm
- Distance
- 54.0 mm
- Height
- 70.0 mm

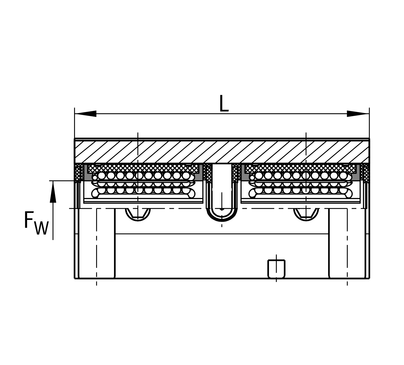

- Length
- 142.0 mm
- Load capacity dyn.
- 9600.0 N
- Load capacity stat.
- 12000.0 N
- Lower tolerance
- 0.15 mm
- Lubrication nipple
- NIP5MZ
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Relubrication facility
- AS
- RoHS
- RoHS compliant with declarable substances
- Seal
- PP
- Size code
- 30
- Upper tolerance
- 0.15 mm
- Width across flats
- 5.0 mm
