Description
Linear ball bearing and housing unit; open design, adjustable clearance, with self-aligning linear ball bearing, contact seals on both sides
INA
KTSOS25-PP-AS

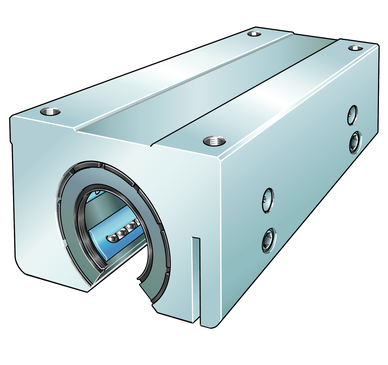

Linear Ball Bearing and Housing Unit
od EUR 216.66z VAT
netto EUR 176.15 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KTSOS25-PP-AS—
EUR 216.66
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KTSOS25-PP-AS#N1
EAN4012802271300
Masa1.06 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
26 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KTSOS25-PP-AS#N1
- EAN
- 4012802271300
Dimensions
- Width B
- 78 mm
- Mass
- 1.06 kg
Load ratings and operation
- Sealing
- PP
Full manufacturer specification19 parameters · expand
- Angle
- 57.0 °
- Ball rows
- 6.0
- Center height
- 30.0 mm
- Diameter of ball complement
- 25.0 mm
- Distance
- 44.0 mm
- Height
- 51.0 mm
- Length
- 122.0 mm
- Load capacity dyn.
- 6400.0 N
- Load capacity stat.
- 8600.0 N
- Lower tolerance
- 0.15 mm
- Lubrication nipple
- NIP5MZ
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Relubrication facility
- AS
- RoHS
- RoHS compliant with declarable substances
- Seal
- PP
- Size code
- 25
- Upper tolerance
- 0.15 mm
- Width across flats
- 3.0 mm
