Description
Linear ball bearing and housing unit; sealed, greased, with relubrication facility; corrosion-resistant design possible
INA

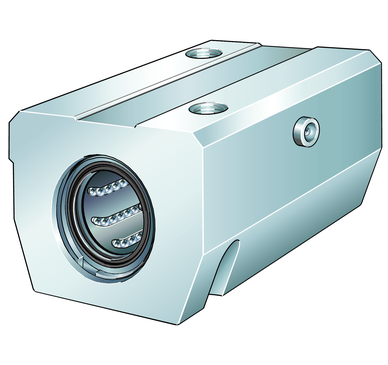

KTB20-B-PP-AS
Linear Ball Bearing and Housing Unit
od EUR 212.74z VAT
netto EUR 172.96 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KTB20-B-PP-AS—
EUR 212.74
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KTB20-B-PP-AS#N1
EAN4012802473094
Masa745 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KTB20-B-PP-AS#N1
- EAN
- 4012802473094

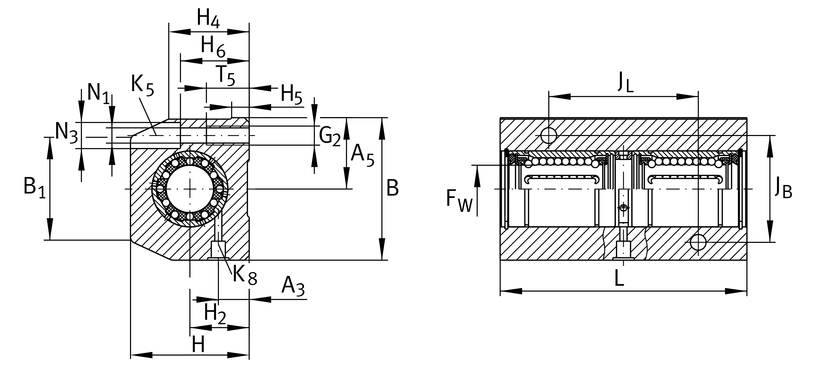

Dimensions
- Width B
- 60 mm
- Mass
- 745 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification17 parameters · expand
- Center height
- 25.0 mm
- Diameter of ball complement
- 20.0 mm
- Height
- 50.0 mm
- Length
- 104.0 mm
- Load capacity dyn. C
- 2550.0 N
- Load capacity stat. C0
- 2450.0 N
- Lower tolerance
- 0.15 mm
- Lubrication nipple
- NIPA2
- Mounting Dimension
- 30.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Relubrication facility
- AS
- Screw ISO 4762
- M6
- Seal
- PP
- Size code
- 20
- Thread size
- M8
- Upper tolerance
- 0.15 mm
