Description
Stud type track rollers KRV..-B, single row needle roller bearings with particularly thick-walled outer ring, full complement needle roller set and with a solid roller stud with fixing thread and a mounting aid, axial guidance of outer ring is provided by the contact flange and contact washer, gap seals on both sides, without eccentric collar
INA
KRV35-B-NMT
Stud type track roller
od EUR 60.86z VAT
netto EUR 49.48 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KRV35-B-NMT—
EUR 60.86
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KRV35-B-NMT#N1
EAN4047643179133
Masa204 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
36 parametersIdentification
- Manufacturer
- INA
- Type
- Stud type track roller
- Part number (SKU)
- KRV35-B-NMT#N1
- EAN
- 4047643179133

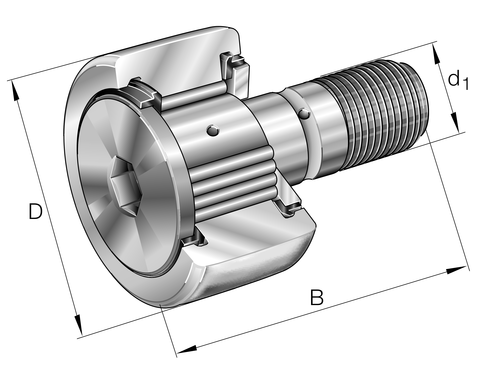

Dimensions
- Outside diameter D
- 35 mm
- Width B
- 52 mm
- Mass
- 204 g
Load ratings and operation
- Dynamic load rating C
- 12700 N
- Static load rating C₀
- 23400 N
- Sealing
- SPSP
Full manufacturer specification26 parameters · expand
- Assembling aid head
- I6
- Bolt/stud length effectively
- 32.5 mm
- Diameter lubrication hole
- 3.0 mm
- Distance to lubrication hole
- 8.0 mm
- Drive-fit lubrication nipple
- NIPA2X7,5
- Fatigue load limit, radial
- 3250.0 N
- Fit diameter of roller stud / stud
- 16.0 mm
- Grease nipples
- 2x
- Minimum chamfer dimension
- 0.6 mm
- Mounting aid
- I6
- Outer ring profile
- R500
- PFAS
- nein
- Protrusion outer ring to thrust washer
- 0.8 mm
- REACH
- REACH compliant with declarable lead proportion
- Relubrication
- KSP
- RoHS
- RoHS compliant with declarable substances
- Sealing
- SPSP
- Special shape
- NMT
- Speed on permanent grease lubrication
- 1600.0 1/min
- Stop diameter of thrust washer
- 27.6 mm
- Thread
- M16X1,5
- Thread length
- 17.0 mm
- Tightening torque nut
- 58.0 Nm
- Width of flats
- 8.0 mm
- Width, outer ring
- 18.0 mm
- Witdh of thrust washer
- 19.6 mm
