Description
Stud type track rollers KRV..-PP-A, single row needle roller bearings with particularly thick-walled outer ring, full complement needle roller set and with a solid roller stud with fixing thread and a mounting aid, axial guidance of outer ring is provided by the plastic axial plain washers, contact flange and contact washer, three-stage sealing by plastic axial plain washer on both sides, without eccentric collar
KRV16-PP-A-NMT
Stud type track roller
od EUR 37.47z VAT
netto EUR 30.46 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
Brought in to order — approx. 10 working days
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
33 parametersIdentification
- Manufacturer
- INA
- Type
- Stud type track roller
- Part number (SKU)
- KRV16-PP-A-NMT#N1
- EAN
- 4054362448266

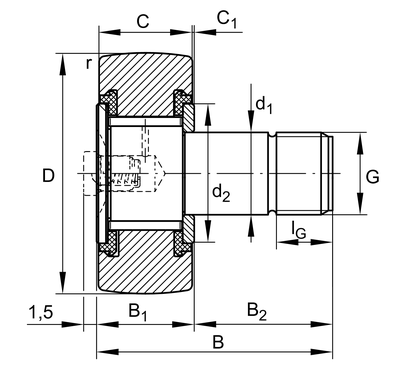

Dimensions
- Outside diameter D
- 16 mm
- Width B
- 28 mm
- Mass
- 18 g
Load ratings and operation
- Dynamic load rating C
- 4850 N
- Static load rating C₀
- 6700 N
- Sealing
- PP
Full manufacturer specification23 parameters · expand
- Assembling aid head
- SL
- Bolt/stud length effectively
- 16.0 mm
- Drive-fit lubrication nipple
- NIPA1
- Fatigue load limit, radial
- 970.0 N
- Fit diameter of roller stud / stud
- 6.0 mm
- Grease nipples
- 1x
- Minimum chamfer dimension
- 0.15 mm
- Outer ring profile
- IOP
- PFAS
- nein
- Protrusion lubrication nipple
- 1.5 mm
- Protrusion outer ring to thrust washer
- 0.6 mm
- REACH
- REACH compliant with declarable lead proportion
- Relubrication
- K
- RoHS
- RoHS compliant with declarable substances
- Sealing
- PP
- Special shape
- NMT
- Speed on permanent grease lubrication
- 3800.0 1/min
- Stop diameter of thrust washer
- 12.5 mm
- Thread
- M6
- Thread length
- 8.0 mm
- Tightening torque nut
- 3.0 Nm
- Width, outer ring
- 11.0 mm
- Witdh of thrust washer
- 12.2 mm
