Description

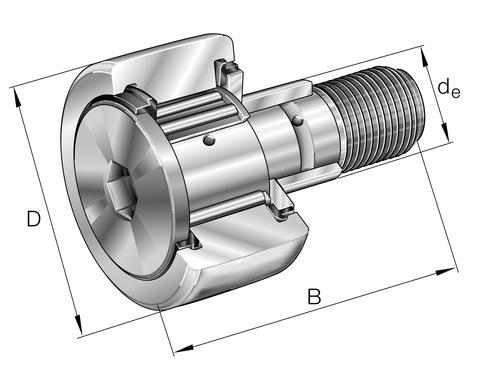

Stud type track rollers KRE..-B, single row needle roller bearings with particularly thick-walled outer ring, needle roller and cage assembly and a solid roller stud with fixing thread and a mounting aid, axial guidance of outer ring is provided by the contact flange and contact washer, gap seals on both sides, with eccentric collar
INA
KRE22-B
Stud type track roller
od EUR 49.56z VAT
netto EUR 40.29 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KRE22-B—
EUR 49.56
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KRE22-B#N1>1
EAN4047643178778
Masa47 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
35 parametersIdentification
- Manufacturer
- INA
- Type
- Stud type track roller
- Part number (SKU)
- KRE22-B#N1>1
- EAN
- 4047643178778

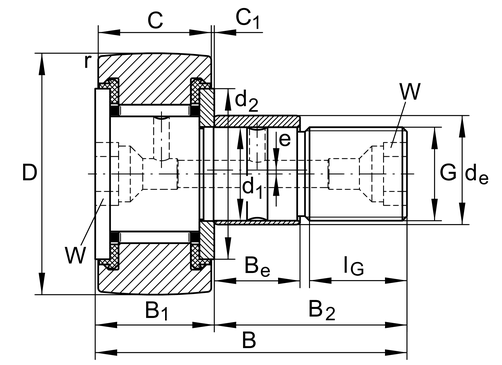

Dimensions
- Outside diameter D
- 22 mm
- Width B
- 36 mm
- Mass
- 47 g
Load ratings and operation
- Dynamic load rating C
- 4500 N
- Static load rating C₀
- 5400 N
- Sealing
- SPSP
Full manufacturer specification25 parameters · expand
- Assembling aid head
- I6
- Assembling aid stud
- I6
- Bolt/stud length effectively
- 23.0 mm
- Diameter of eccentric
- 13.0 mm
- Drive-fit lubrication nipple
- NIPA1X4,5
- Drive-fit lubrication nipple unmounted
- 2x
- Eccentricity
- 0.5 mm
- Fatigue load limit, radial
- 740.0 N
- Fit diameter of roller stud / stud
- 10.0 mm
- Minimum chamfer dimension
- 0.3 mm
- Nominal dimension for hexagonal socket
- 5.0 mm
- Outer ring profile
- R500
- PFAS
- nein
- Protrusion outer ring to thrust washer
- 0.6 mm
- REACH
- REACH compliant with declarable lead proportion
- RoHS
- RoHS compliant with declarable substances
- Sealing
- SPSP
- Speed on permanent grease lubrication
- 8000.0 1/min
- Stop diameter of thrust washer
- 17.5 mm
- Thread
- M10X1
- Thread length
- 12.0 mm
- Tightening torque nut
- 15.0 Nm
- Width, eccentric
- 10.0 mm
- Width, outer ring
- 12.0 mm
- Witdh of thrust washer
- 13.2 mm
