Description

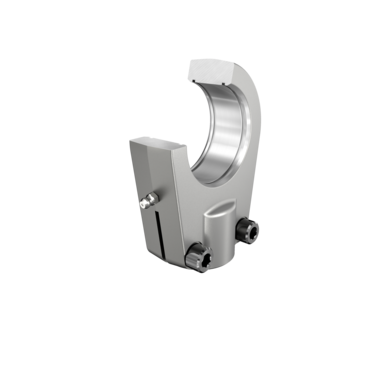

Hydraulic rod end, with thread clamping device, right hand thread, without plain bearing
INA
KO.GIHNRK90-0860-C
Rod end housing
⌀90 × 130 mm
od EUR 1,061.58z VAT
netto EUR 863.07 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KO.GIHNRK90-0860-C—
EUR 1,061.58
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KO.GIHNRK90-0860-C#N1
EAN4064327809568
Wymiary⌀90 × 130 mm
Masa13.94 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
40 parametersIdentification
- Manufacturer
- INA
- Type
- Rod end housing
- Part number (SKU)
- KO.GIHNRK90-0860-C#N1
- EAN
- 4064327809568

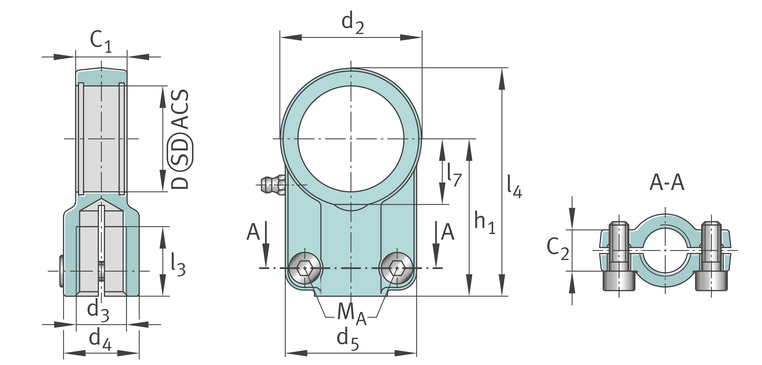

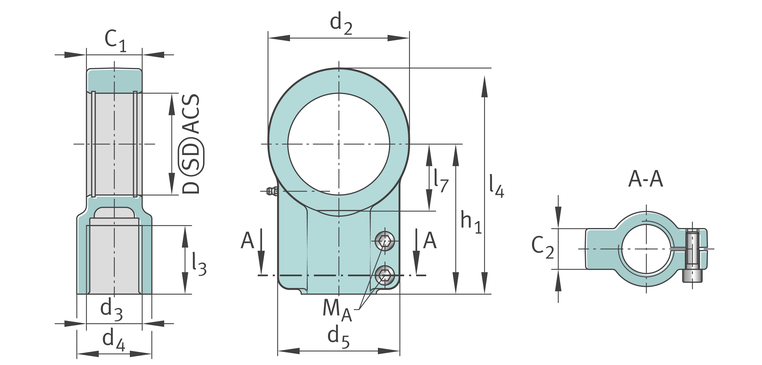

Dimensions
- Bore d
- 90 mm
- Outside diameter D
- 130 mm
- Mass
- 13.94 kg
Load ratings and operation
- Static load rating C₀
- 750000 N
Full manufacturer specification32 parameters · expand
- Basic static load rating
- 750000.0 N
- Bearing sort
- SPB
- Bearing split
- No
- Cylinder Force
- 400000.0 N
- Distance drilling with/shaft start
- 85.0 mm
- Height bearing seat
- 195.0 mm
- Housing height
- 296.0 mm
- Housing length
- 160.0 mm
- Housing material
- C45 (ISO683-1)
- Housing opening
- durchgehend
- Housing qty bolts
- 1
- Housing shape
- ISO24652 Type D
- Housing sort
- Hydraulic rod end with thread clamping device
- Housing split
- Nein
- Housing width
- 72.0 mm
- Inner diameter bearing
- 90.0 mm
- Operating temperature max.
- 200.0 °C
- Operating temperature min.
- -60.0 °C
- Outer diameter bearing
- 130.0 mm
- Outer eye diameter
- 185.0 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Shank diameter
- 100.0 mm
- Shank diameter, large
- 160.0 mm
- Shank Length Internal thread head
- 195.0 mm
- Thread length Internal thread
- 91.0 mm
- Thread size
- M72x3
- Tightening torque
- 385.0 Nm
- Total length internal thread head
- 296.0 mm
- Width of the rod end
- 72.0 mm
- Width of the rod end, max.
- 73.0 mm
