Description
Linear ball bearing and housing unit; Heavy duty range, With segment cutout, without slot, sealed, greased, with relubrication facility
INA
KGSNO40-PP-AS

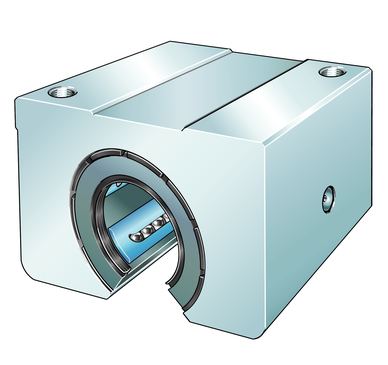

Linear Ball Bearing and Housing Unit
od EUR 177.13z VAT
netto EUR 144.01 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KGSNO40-PP-AS—
EUR 177.13
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KGSNO40-PP-AS#N1
EAN4012802049565
Masa1.40 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KGSNO40-PP-AS#N1
- EAN
- 4012802049565
Dimensions
- Width B
- 108 mm
- Mass
- 1.40 kg
Load ratings and operation
- Sealing
- PP
Full manufacturer specification18 parameters · expand
- Angle
- 56.0 °
- Ball rows
- 6.0
- Center height
- 45.0 mm
- Diameter of ball complement
- 40.0 mm
- Distance
- 58.0 mm
- Height
- 77.0 mm
- Length
- 80.0 mm
- Load capacity dyn.
- 10200.0 N
- Load capacity stat.
- 9600.0 N
- Lower tolerance
- 0.15 mm
- Lubrication nipple
- NIP5MZ
- PFAS
- nein
- REACH
- REACH compliant with declarable lead proportion
- Relubrication facility
- AS
- RoHS
- RoHS compliant with declarable substances
- Seal
- PP
- Size code
- 40
- Upper tolerance
- 0.15 mm
