Description
Linear Ball Bearing and Housing Units, Sealed, Greased, Corrosion-resistant Design Possible
INA
KGHA30-PP

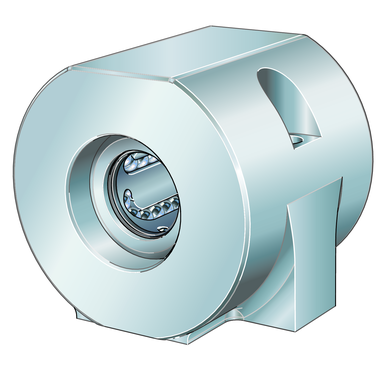

Linear Ball Bearing and Housing Unit
od EUR 64.71z VAT
netto EUR 52.61 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KGHA30-PP—
EUR 64.71
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KGHA30-PP#N1
EAN4012802464092
Masa855 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KGHA30-PP#N1
- EAN
- 4012802464092
Dimensions
- Width B
- 65 mm
- Mass
- 855 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification12 parameters · expand
- Axis center
- 35.0 mm
- Diameter of ball complement
- 30.0 mm
- Dynamic load rating
- 3300.0 N
- Height
- 67.5 mm
- Length
- 59.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- RoHS
- RoHS compliant
- Seal
- PP
- Size code
- 30
- Static load rating
- 2700.0 N
- Tolerance
- 0.5 mm
