Description
Linear ball bearing and housing unit; adjustable, sealed, greased, with relubrication facility; corrosion-resistant design possible
INA
KGBS20-PP-AS

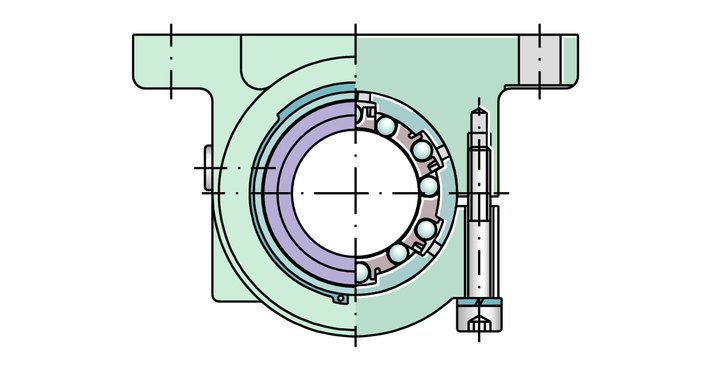

Linear Ball Bearing and Housing Unit
od EUR 68.81z VAT
netto EUR 55.94 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KGBS20-PP-AS—
EUR 68.81
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KGBS20-PP-AS#N1
EAN4047643183314
Masa300 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
25 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KGBS20-PP-AS#N1
- EAN
- 4047643183314

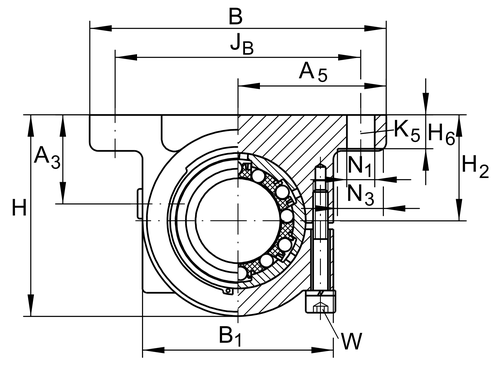

Dimensions
- Width B
- 70 mm
- Mass
- 300 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification18 parameters · expand
- Ball rows
- 6.0
- Diameter of ball complement
- 20.0 mm
- Distance
- 28.0 mm
- Dynamic load rating
- 1570.0 N
- Height
- 47.5 mm
- Height shaft
- 25.0 mm
- Length
- 45.0 mm
- Load capacity stat. C0
- 1230.0 N
- Lower tolerance
- 0.15 mm
- Lubrication nipple
- NIPA1
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Relubrication facility
- AS
- Seal
- PP
- Size code
- 20
- Tolerance
- h12
- Upper tolerance
- 0.15 mm
- Width across flats
- 3.0 mm
