Description
Linear ball bearing and housing unit; open design, sealed, greased, with relubrication facility; corrosion-resistant design possible
INA
KGBO30-PP-AS

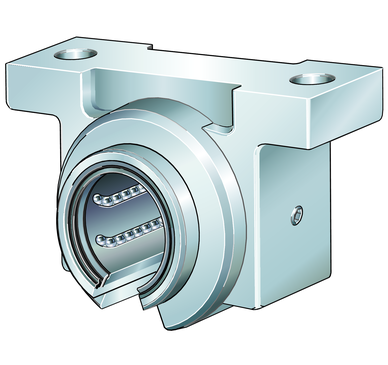

Linear Ball Bearing and Housing Unit
od EUR 115.14z VAT
netto EUR 93.61 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KGBO30-PP-AS—
EUR 115.14
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KGBO30-PP-AS#N1
EAN4012802048063
Masa780 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KGBO30-PP-AS#N1
- EAN
- 4012802048063
Dimensions
- Width B
- 88 mm
- Mass
- 780 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification16 parameters · expand

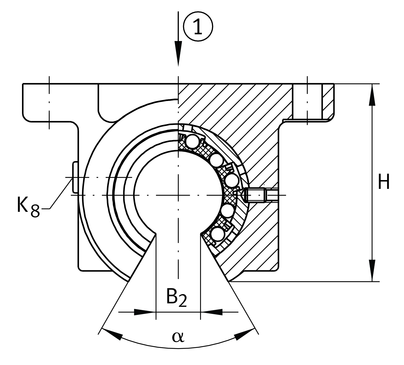

- Angle
- 54.0 °
- Ball rows
- 5.0
- Center height
- 63.5 mm
- Distance
- 48.0 mm
- Height shaft
- 35.0 mm
- Length
- 68.0 mm
- Load capacity dyn.
- 3700.0 N
- Load capacity stat. C0
- 3000.0 N
- Lower tolerance
- 0.2 mm
- Lubrication nipple
- NIPA2
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Relubrication facility
- AS
- Seal
- PP
- Tolerance
- h12
- Upper tolerance
- 0.2 mm
