Description

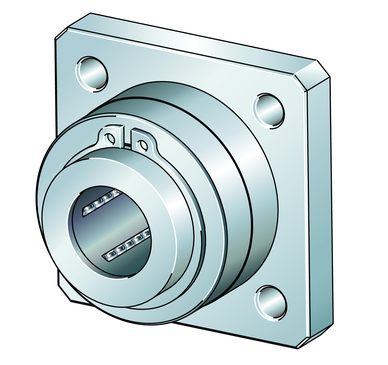

Linear ball bearing and housing unit; with flange, sealed, greased, with relubrication facility; corrosion-resistant design possible
INA
KFB16-B-PP-AS
Linear Ball Bearing and Housing Unit
od EUR 108.82z VAT
netto EUR 88.47 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KFB16-B-PP-AS—
EUR 108.82
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KFB16-B-PP-AS#N1
EAN4054364054106
Masa120 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
23 parametersIdentification
- Manufacturer
- INA
- Type
- Linear Ball Bearing and Housing Unit
- Part number (SKU)
- KFB16-B-PP-AS#N1
- EAN
- 4054364054106

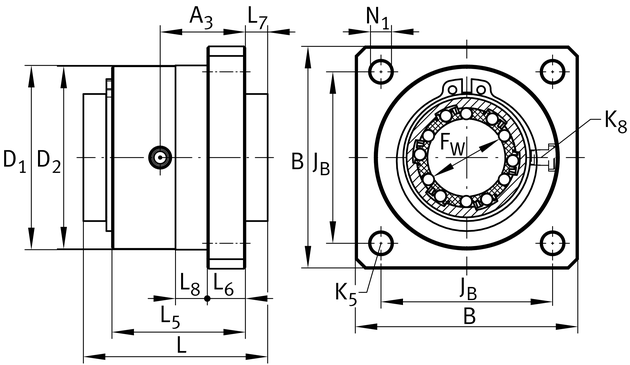

Dimensions
- Width B
- 50 mm
- Mass
- 120 g
Load ratings and operation
- Sealing
- PP
Full manufacturer specification16 parameters · expand
- Ball rows
- 5.0
- Diameter
- 38.0 mm
- Diameter of ball complement
- 16.0 mm
- Length
- 36.0 mm
- Load capacity dyn. C
- 710.0 N
- Load capacity stat. C0
- 530.0 N
- Lower tolerance
- 0.001 mm
- Lubrication nipple
- NIPD3
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Relubrication facility
- AS
- RoHS
- RoHS compliant
- Seal
- PP
- Size code
- 16
- Thickness
- 8.0 mm
- Upper tolerance
- g7
