Description

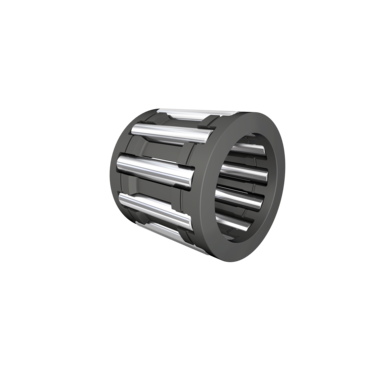

Needle roller cage assembly KBK, single row, similar KBK, piston pin bearing
INA
KBK12X15X15-A(CS)/0-7
Needle roller cage assembly
od EUR 6.90z VAT
netto EUR 5.61 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
KBK12X15X15-A(CS)/0-7—
EUR 6.90
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)KBK12X15X15-A(CS)/0-7#S400
EAN4054369567137
Opakowanie400 szt.
Minimum order400 szt.
Masa5.6 g
Ten towar sprzedawany jest w opakowaniach po 400 szt.
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
17 parametersIdentification
- Manufacturer
- INA
- Type
- Needle roller cage assembly
- Part number (SKU)
- KBK12X15X15-A(CS)/0-7#S400
- EAN
- 4054369567137
Dimensions
- Width B
- 15 mm
- Mass
- 5.6 g
Load ratings and operation
- Dynamic load rating C
- 6000 N
- Static load rating C₀
- 7900 N
- Limiting speed
- 27000 1/min
Full manufacturer specification8 parameters · expand
- Fatigue load limit, radial
- 1110.0 N
- Operating temperature max.
- 140.0 °C
- Operating temperature min.
- -30.0 °C
- Outside diameter of needle roller complement
- 15.0 mm
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Under roller diameter
- 12.0 mm
