Description
Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
FAG
JK0S060

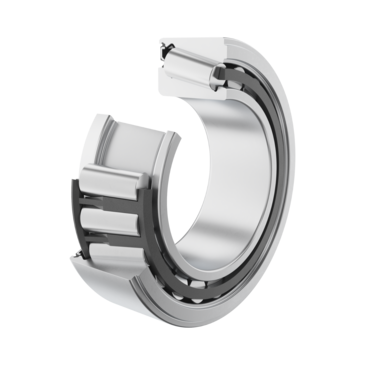

Tapered roller bearing
⌀60 × 95 mm
od EUR 86.51z VAT
netto EUR 70.33 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
JK0S060—
EUR 86.51
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)JK0S060#N1
EAN4012801047876
Wymiary⌀60 × 95 mm
Masa651 g
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
40 parametersIdentification
- Manufacturer
- FAG
- Type
- Tapered roller bearing
- Part number (SKU)
- JK0S060#N1
- EAN
- 4012801047876
- Cage
- TVP
- Tolerance class
- PN

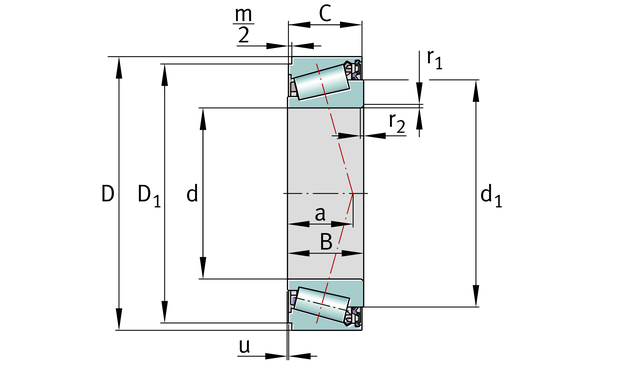

Dimensions
- Bore d
- 60 mm
- Outside diameter D
- 95 mm
- Mass
- 651 g
Load ratings and operation
- Dynamic load rating C
- 82000 N
- Static load rating C₀
- 123000 N
- Limiting speed
- 3350 1/min
Full manufacturer specification28 parameters · expand
- Cage
- TVP
- Diameter of groove
- 89.3 mm
- Distance between the apexes of the pressure cones
- 23.0 mm
- Dynamic axial load factor
- 1.4
- Fatigue load limit, radial
- 15200.0 N
- Groove diameter at housing
- 97.0 mm
- Guidance rib diameter of inner ring
- 79.5 mm
- Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y
- 0.43
- Load carrying capacity of snap ring connection
- 59300.0 N
- Lower limit deviation
- 0.0 mm
- Maximum axial clamping force
- 16400.0 N

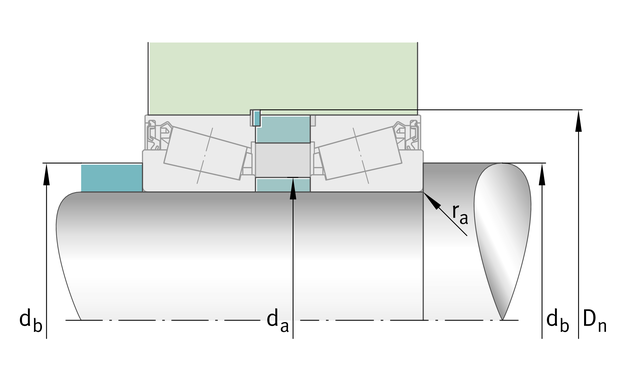

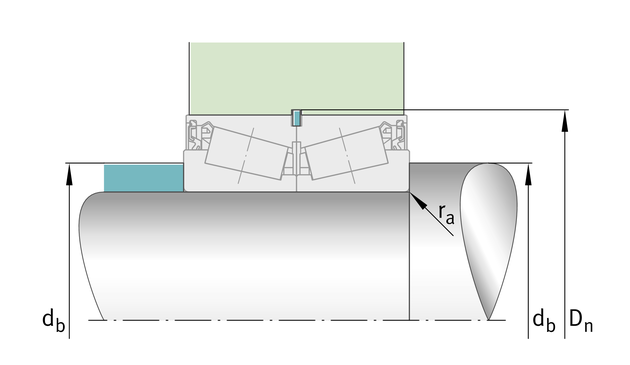

- Maximum diameter of shaft shoulder
- 67.0 mm
- Maximum fillet radius of shaft
- 1.5 mm
- Minimum chamfer dimension of inner ring back face
- 1.5 mm
- Minimum diameter of shaft shoulder
- 67.0 mm
- Number of rows
- 1
- Operating temperature max.
- 110.0 °C
- Operating temperature min.
- -30.0 °C
- PFAS
- nein
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Snap ring
- BR95
- Stand out inner to outer ring
- 0.03 mm
- Static axial load factor
- 0.77
- Upper limit deviation
- 0.05 mm
- Width of groove
- 1.25 mm
- Width, inner ring
- 26.0 mm
- Width, outer ring
- 25.0 mm
