Description
HYDNUT..-E-INCH
Schaeffler

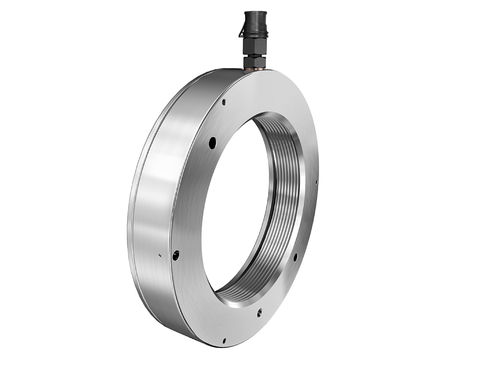

HYDNUT320-E-INCH
Hydraulic nut
od EUR 4,625.18z VAT
netto EUR 3,760.31 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HYDNUT320-E-INCH—
EUR 4,625.18
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HYDNUT320-E-INCH#S1
EAN4054371253905
Masa32.60 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
19 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Hydraulic nut
- Part number (SKU)
- HYDNUT320-E-INCH#S1
- EAN
- 4054371253905

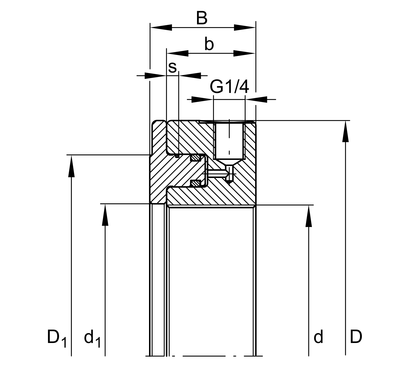

Dimensions
- Width B
- 63 mm
- Mass
- 32.60 kg
Full manufacturer specification13 parameters · expand
- Delivery scope
- 1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual
- Drive-up force, max.
- 1322.0 kN
- Number of thread convolutions per inch
- 6.0
- Outer Diameter
- 430.0 mm
- PFAS
- nein
- Piston surface
- 264.5 cm²
- Pressure, max.
- 500.0 bar
- Series
- E-INCH
- Stroke, max.
- 14.0 mm
- Thread flank diameter
- 316.324 mm
- Thread nominal diameter
- 319.075 mm
- Thread type
- UN
- Width press ring
- 53.0 mm
