Description
HYDNUT..-HEAVY
Schaeffler
HYDNUT125-HEAVY

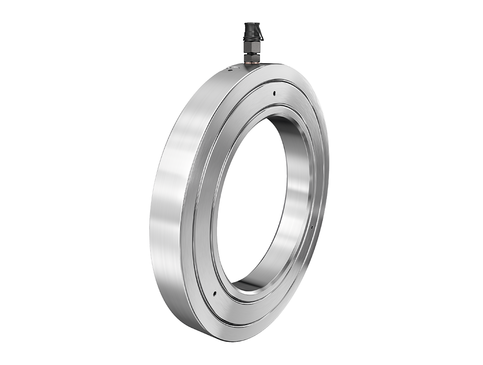

Hydraulic nut
od EUR 4,104.51z VAT
netto EUR 3,337.00 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HYDNUT125-HEAVY—
EUR 4,104.51
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HYDNUT125-HEAVY#N1
EAN4012802154696
Masa12.40 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
15 parametersIdentification
- Manufacturer
- Schaeffler
- Type
- Hydraulic nut
- Part number (SKU)
- HYDNUT125-HEAVY#N1
- EAN
- 4012802154696

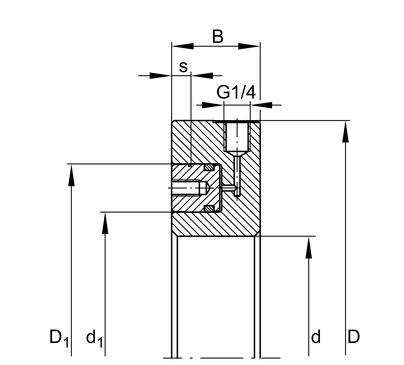

Dimensions
- Width B
- 46 mm
- Mass
- 12.40 kg
Full manufacturer specification9 parameters · expand
- Delivery scope
- 1 pc. Hydraulic nut, 1 pc. Screw plug, 1 pc. Connection nipple, 1 pc. Replacement seal set, 1 pc. User manual
- Drive-up force, max.
- 820.0 kN
- Inner diameter (tolerance: H7)
- 125.0 mm
- Outer Diameter
- 245.0 mm
- PFAS
- nein
- Piston surface
- 137.0 cm²
- Pressure, max.
- 600.0 bar
- Series
- HEAVY
- Stroke, max.
- 10.0 mm
