Description

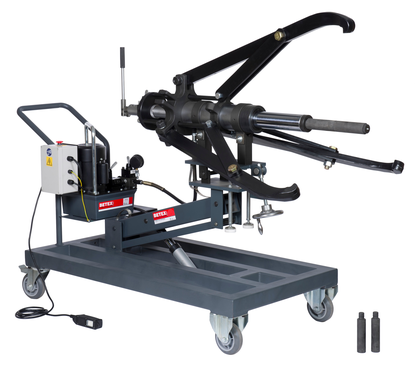

BETEX HXPM, 2/3-arm self-centering, max. pull-off force 490 kN, short version, mobile
Betex
HXPM-50T-2/3-ARM-SHORT
Mobile hydraulic heavy duty hook puller
od EUR 26,037.21z VAT
netto EUR 21,168.46 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HXPM-50T-2/3-ARM-SHORT—
EUR 26,037.21
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HXPM-50T-2/3-ARM-SHORT#N
EAN4064328406803
Masa385.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- Betex
- Type
- Mobile hydraulic heavy duty hook puller
- Part number (SKU)
- HXPM-50T-2/3-ARM-SHORT#N
- EAN
- 4064328406803
Dimensions
- Mass
- 385.00 kg
Full manufacturer specification19 parameters · expand
- Castors
- 2 swivel castors with brake function, 2 fixed castors
- Current type
- AC power
- Dimensions [LxWxH] (mm)
- 2245 x 800 x 1155
- Functional principle
- electrically operated hydraulic unit for main cylinder and height adjustment, safety valve prevents overload, opening and closing of the gripper arms by means of hand pump
- Grip depth, max.
- 500.0 mm
- Grip width, max.
- 950.0 mm
- Grip width, min.
- 200.0 mm
- Included in delivery
- Remote control, 4 adapter pieces (total length 620 mm), security blanket
- Max. operating pressure
- 700.0 bar
- Max. working stroke main cylinder
- 330.0 mm
- PFAS
- nein
- Power frequency
- 50 – 60 Hz
- Pulling force
- 490.0 kN
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Series
- HXPM
- Usability
- two- or three-arm puller (convertible)
- Voltage
- 230.0 V
- Working height range [bottom – center axis cylinder] (mm)
- 820 – 1370
