Description

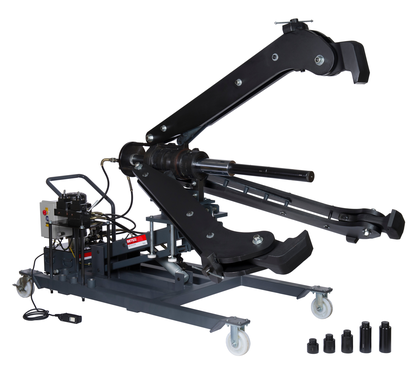

BETEX HXPM, 2/3-arm self-centering, max. pull-off force 980 kN, mobile
Betex
HXPM-100T-2/3-ARM
Mobile hydraulic heavy duty hook puller
od EUR 64,529.82z VAT
netto EUR 52,463.27 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HXPM-100T-2/3-ARM—
EUR 64,529.82
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HXPM-100T-2/3-ARM#N
EAN4064328406827
Masa1120.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
24 parametersIdentification
- Manufacturer
- Betex
- Type
- Mobile hydraulic heavy duty hook puller
- Part number (SKU)
- HXPM-100T-2/3-ARM#N
- EAN
- 4064328406827
Dimensions
- Mass
- 1120.00 kg
Full manufacturer specification19 parameters · expand
- Castors
- 2 swivel castors with brake function, 2 fixed castors
- Current type
- Three-phase AC
- Dimensions [LxWxH] (mm)
- 2790 x 1030 x 1410
- Functional principle
- electrically operated hydraulic unit for main cylinder, height adjustment as well as opening and closing of the gripper arms, safety valve prevents overloading
- Grip depth, max.
- 1220.0 mm
- Grip width, max.
- 1500.0 mm
- Grip width, min.
- 300.0 mm
- Included in delivery
- Remote control, 7 adapter pieces (total length 1125 mm), security blanket
- Max. operating pressure
- 700.0 bar
- Max. working stroke main cylinder
- 270.0 mm
- PFAS
- nein
- Power frequency
- 50 – 60 Hz
- Pulling force
- 980.0 kN
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Series
- HXPM
- Usability
- two- or three-arm puller (convertible)
- Voltage
- 400.0 V
- Working height range [bottom – center axis cylinder] (mm)
- 820 – 1320
