Description

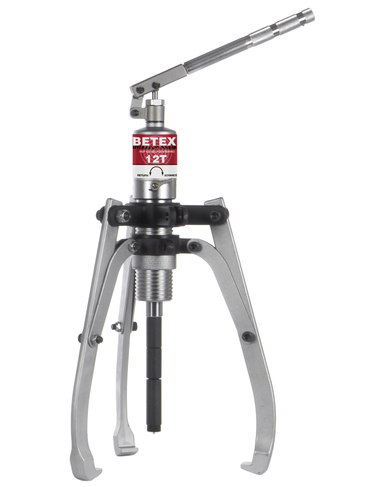

BETEX HSP, self-centering with integrated hand pump-cylinder unit
Betex
HSP-123
Hydraulic two-/three-arm puller
od EUR 1,495.40z VAT
netto EUR 1,215.77 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HSP-123—
EUR 1,495.40
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HSP-123#N
EAN4064327921994
Masa15.00 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
16 parametersIdentification
- Manufacturer
- Betex
- Type
- Hydraulic two-/three-arm puller
- Part number (SKU)
- HSP-123#N
- EAN
- 4064327921994
Dimensions
- Mass
- 15.00 kg
Full manufacturer specification11 parameters · expand

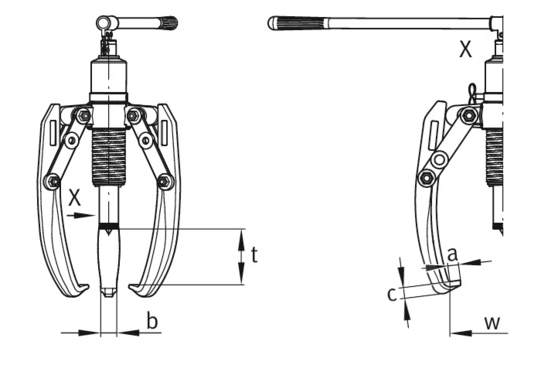

- Grip depth, max.
- 300.0 mm
- Grip width, max.
- 515.0 mm
- Grip width, min.
- 120.0 mm
- Included in delivery
- Safety net or safety blanket, thrust piece, extension adapter, carrying case
- PFAS
- nein
- Pulling force
- 110.0 kN
- REACH
- REACH conform
- RoHS
- RoHS compliant
- Series
- HSP
- Stroke
- 85.0 mm
- Usability
- two- or three-arm puller (convertible)
