Description

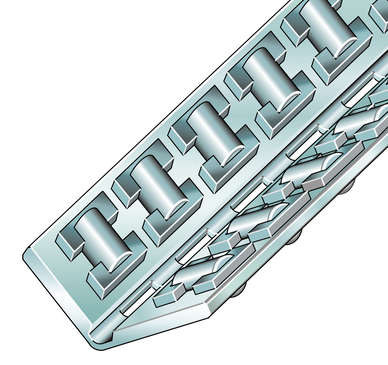

Angled Flat cage
INA
HRW100X1006
Flat cage
od EUR 390.41z VAT
netto EUR 317.41 · cena detaliczna
This item is brought in to order (about 10 working days) and we sell it to business customers. Open a business account.
HRW100X1006—
EUR 390.41
To orderapprox. 10 days
Brought in to order — approx. 10 working days
Symbol (SKU)HRW100X1006#U
EAN4054372022821
Masa1.24 kg
Buying for a company?
A business account gives net prices, quantity breaks, deferred payment and ordering from a list of designations.
Open a business account →Technical data
15 parametersIdentification
- Manufacturer
- INA
- Type
- Flat cage
- Part number (SKU)
- HRW100X1006#U
- EAN
- 4054372022821
Dimensions
- Mass
- 1.24 kg
Full manufacturer specification10 parameters · expand
- Associated rail
- M8550, V8550
- Length
- 1006.0 mm
- Length rolling element
- 14.0 mm
- Load capacity dyn.
- 133200.0 N
- Load capacity stat.
- 246300.0 N
- Max. length
- 4000.0 mm
- PFAS
- nein
- REACH
- REACH compliant for SVHC free linear products (acc to PL responsibles)
- Rolling element diameter
- 10.0 mm
- Size code
- 100
